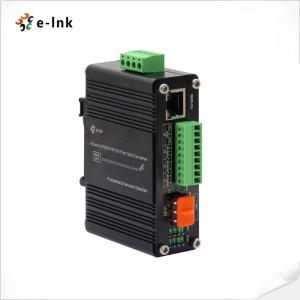

Mini Industrial 100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422

Product Overview & Key Features:

✔️ Dual Network Conversion Capability

• Supports 10/100Base-T Ethernet with auto-negotiation (half/full duplex) over RJ45 interface

• Features 100Base-X SFP fiber slot compatible with single-mode/multi-mode transceivers

• Extends signals up to 2km on multimode fiber and 80km on single-mode fiber

✔️ Multi-Protocol Serial Data Support

• Integrated 1-channel RS232/RS485/RS422 serial data conversion

• Converts standard serial signals to fiber optic links for noise immunity

• Supports baud rates up to 115.2Kbps for high-speed serial communication

✔️ Industrial Hardened Design

• DIN-rail mounting compliant with industrial installation standards

• Wide operating temperature (-40°C to +75°C) for extreme environments

• IP30 protection rating with metal housing for EMI/RFI immunity

• EN55022 compliant for electromagnetic compatibility

✔️ Flexible Configuration Options

• Hot-swappable SFP modules for customizable fiber connectivity

• DIP switch configurable for RS485/RS422 termination and bias

• LED indicators for power, link status, and data transmission monitoring

✔️ Reliable Power System

• 12-48VDC wide range input with reverse polarity protection

• Redundant power design for critical application reliability

• Low power consumption optimized for 24/7 operation
