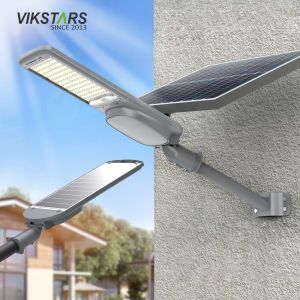

High Power All In One 200W 300W 400W 500W Split Solar Street Lights With Additional Solar Panel
Brand Name:VIKSTARS
Certification:CE, CB, ROHS, AS Required
Model Number:VS-SSA-K
Minimum Order Quantity:20pcs
Delivery Time:15-25 days
Payment Terms:T/T
Contact Now
Add to Cart
Site Member
Location:
Shenzhen Guangdong China
Address:
5/F, Building 3#, Star Harbor Co-creation industrial Park, Fuhai, Bao`An, Shenzhen, China.
Supplier`s last login times:
within 33 hours
Product Details
Company Profile
Product Details
High Power All In One 200W 300W 400W 500W Split Solar Street Lights With Additional Solar Panel
DELIVERY
1. Project lamp, not stock, production according to orders,
production time around 15 days;support sample order, production
time around around 2-3 days;
2. Solar street light lamp body with & without " VIKSTARS " trademark will be shipped randomly for small order, if have
requirements for this pls let us know;
3. Price based on EXW term, not including tax or freight, but we
can offer Logistics and customs clearance assistance.
PARAMETERs
LAMP NAME | Solar Street Lights | |||
MODEL NO. | VS-SSA-K20 | VS-SSA-K30 | VS-SSA-K40 | VS-SSA-K50 |
POWER | 200W | 300W | 400W | 500W |
BATTERY | 3.2V 22AH Lithium | 3.2V 45AH Lithium | 3.2V 50AH Lithium | 3.2V 60AH Lithium |
SOLAR PANEL | Mono 5V 24W | Mono 5V 54W | Mono 5V 64W | Mono 5V 74W |
LUMEN | 2100-2200lm | 3600-3700lm | 4000-4200lm | 4500-4600lm |
LED QTY | SMD 5054*120pcs | |||
BEAM ANGLE | 120° | |||
CCT | Cold White | |||
C.R.I | 70-80Ra | |||
CHARGE TIME | 4-6 hours | |||
LASTING TIME | 16-18 hours / 3-5 rainy days | |||
INSTALL HEIGHT | 3-4m | 5-6m | 6-7m | 7-8m |
LIGHTING AREA | 80-100㎡ | 150-200㎡ | 200-250㎡ | 250-300㎡ |
WORKING MODE | Intelligent Light Sensor + Time Control + Remote Control(Support
Customize) | |||
INSTALL WAY | Wall/Pole/Hug Hoop Install (Accessories not include hoop, need buy additionally) | |||
MATERIAL | High Quality Die-cast Aluminum Heat Sink + Tempered Glass Cover /
Sand Grey | |||
LAMP SIZE | 670*100*240mm (all watt same size) | |||
PANEL SIZE | 390*450*17mm | 390*590*17mm | 390*730*20mm | |
PACKING | Export Neutral Carton Packing / VIKSTARS Brand Packing / Customizing Packing | |||
WARRANTY | 2 Years | |||
REAL PHOTOs
SIZEs
Manually Measured, Tolerances Is Possible
INSTALLATIONs
| Horizontal Install | Vertical Install | Pole Install | Hug Hoop Install |
PACKING
Power | Carton Size | Qty/ctn | G.W. | Packing |
| 200W | 545*410*115mm | 1pc/ctn | 5.35kg | Export Neutral Carton Packing / VIKSTARS Brand Packing / Customizing Packing |
| 300W | 545*410*115mm | 1pc/ctn | 5.70kg | |
| 400W | 610*400*115mm | 1pc/ctn | 6.00kg | |
| 500W | 740*400*120mm | 1pc/ctn | 7.40kg |
INTELLI LIGHT CONTROL
DETAILs
PROJECTs Live Photos
ORIGIN FACTORY
