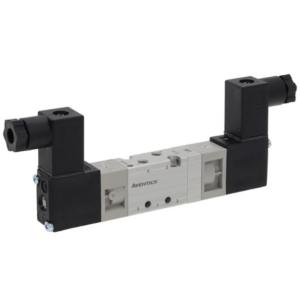

175 L/min Nominal Flow Qn EMERSON VALVE 5/2 M5 SOL-DIFF/AIR 24/DC W/O DIN CONNECTOR VALVE / S 51900108
Brand Name:Emerson
Certification:CE
Model Number:51900108
Minimum Order Quantity:1
Delivery Time:8-10weeks
Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Add to Cart
Verified Supplier
Location:
Wenzhou Zhejiang China
Address:
58 Longhe Road, Liushi Town,Wenzhou, Zhejiang, China 325604
Supplier`s last login times:
within 14 hours
Product Details
Company Profile
Product Details
Specifications
- Activation
- Electrically
- Nominal flow Qn
- 175 l/min
- Switching principle
- 5/2
- Compressed air connection output
- M5
- Working pressure min.
- 1.5 bar
- Working pressure max
- 8 bar
- DC operating voltage
- 24 V
- Manual override
- without detent
- Electrical connection type
- Plug
- Electrical connection size
- EN 175301-803, form C
- Actuating control
- Single Solenoid
- Sealing principle
- Soft Seal
- Pilot
- Internal
- Pilot valve width
- 15 mm
- Valve type
- Spool valve
- Connection type
- Pipe connection
- Return
- Air return with differential piston
- Control pressure min.
- 1.5 bar
- Control pressure max.
- 8 bar
- Min. ambient temperature
- 5 °C
- Max. ambient temperature
- 50 °C
- Medium
- Compressed air
- Max. particle size
- 5 µm
- Oil content of compressed air min.
- 0 mg/m³
- Oil content of compressed air max.
- 5 mg/m³
175 L/min Nominal Flow Qn EMERSON VALVE 5/2 M5 SOL-DIFF/AIR 24/DC W/O DIN CONNECTOR VALVE / S 51900108
