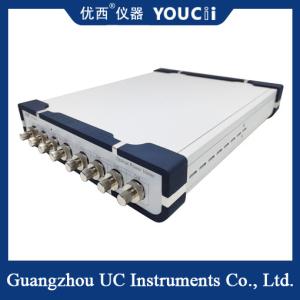

8 Channel Optical Power Meter With Synchronous Scanning Function
Brand Name:YOUCii
Certification:CU,IOS
Model Number:U8728
Minimum Order Quantity:1pcs
Delivery Time:20 work days
Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Add to Cart
Verified Supplier
Location:
Guangzhou China
Address:
R102, #24 Huangcun East Road,Tianhe District, Guangzhou 510660
Supplier`s last login times:
within 33 hours
Product Details
Company Profile
Product Details
High Precision 1000 Data Points LCD Optical Power Meter for B2B Buyers
Product Description:
U8728 8 Channel optical power meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.
The Optical Power Meter is a reliable and accurate tool for measuring optical power and loss. It features CE/FCC/RoHS certification for trustworthiness and durability. The power range is -70~+10dBm with an accuracy of ±0.15dB. The data interface is USB/RS232 for data transfer and storage of up to 1000 data points. The display is a LCD for clear readouts, and the device also offers return loss and wavelength measurement.
Features:
- Product Name: U8728 8 Channel Power Meter
- Uncertainty (accuracy): ± 4% (1200 nm ~ 1610 nm)
- Weight:3.0 kg
- Calibration: Factory
- Resolution: 0.01 DB
- Wavelength Range: 850 ~ 1700 nm nm
- Return Loss: ＞40 dB
- Linearity (power): ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm)
Technical Parameters:
| Model # | U8728A | ||
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | ||
| Power Range | + 5 ~ -65dBm | ||
| Sampling period | 100us (10KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | ＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | ||
| Return Loss | ＞40 dB | ||
| Communication Interface | RS232, USB,Control by PC | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
Support and Services:
Optical Power Meter Technical Support and Service
We offer comprehensive technical support and service for our
Optical Power Meter.
Our team of engineers and technicians are highly experienced and
provide fast and accurate solutions for any difficulties you may
encounter with your product. Our technical support and service can be provided in various ways,
including telephone, email, or direct contact with our team.
We guarantee a response time of 24 hours or less for any queries
you may have. Furthermore,
