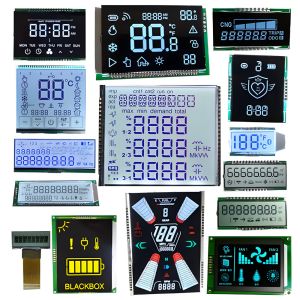

Custom Segment LCD Display Fully Customizable TN Transmissive Positive Wide Temp -30°C to 80°C 6 00 o'clock Viewing Direction

Engineer-Backed Custom LCD Solutions for Harsh Environments

The JY7248TP-FM is a purpose-built 7.0-inch TN segment LCD display engineered for reliability in demanding industrial, automotive, and medical applications. With an extended operating temperature range (-30°C to +80°C) and ultra-low power consumption (3μA typical), it delivers consistent performance in extreme conditions where standard displays fail.

Key Features

• High Visibility: 6:00 o'clock viewing direction optimizes readability in vertical panels.

• Robust Design: Survives thermal shock (-40°C to +90°C storage) and humidity (48hrs @60°C/90%RH tested).

• Energy Efficient: Ideal for battery-powered devices with 3μA typical current draw.

• Rapid Prototyping: Fully customizable segments, icons, and FPC layouts – samples shipped in 2 weeks.

Customization

Every JY7248TP-FM is tailored to your specifications:

1. Design Collaboration: Submit your digit layout/icon concept for DFM analysis.

2. Prototype Validation: Test samples under real-world conditions.

3. Volume Manufacturing: ISO-certified production with 50,000-hour lifespan guarantee.

Request Your Custom LCD Quote Today – Send your schematic to cologne_ke@saef.com.cn for a free technical review. Global shipping from ISO 9001:2015 certified facility.

Absolute Maximum Rating

Electro-Optic Characteristics
