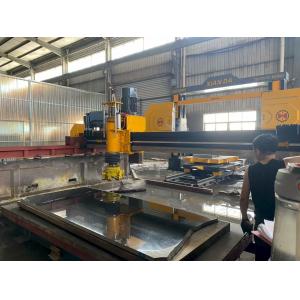

High-Performance Bridge Type Automatic Grinding Machine for Stone Processing

Brand Name:Xianda Machinery

Certification:API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

Model Number:ZDPM-3522/3545

Minimum Order Quantity:1 SET

Delivery Time:1 Month

Payment Terms:L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others

Contact Now

Add to Cart

Fujian Xianda Machinery co.,ltd

Verified Supplier

Address: Anqi Road,Wuli Industrial Park,Jinjiang City,Fujian,China

Supplier`s last login times: within 27 hours

View Contact Details

Product Details Company Profile

Product Details

High-Performance Bridge Type Automatic Grinding Machine for Stone Processing: Precision and Efficiency Redefined

Name: HighPerformance Bridge Type Automatic Grinding Machine for Stone Processing
Brand: Xianda Machinery
Price: 1 USD

Unveiling the Models: ZDPM - 3522 and ZDPM - 3545

We offer two powerful models, ZDPM - 3522 and ZDPM - 3545, each engineered to deliver top - notch performance.

Technical Parameter

Parameter	Unit	ZDPM-3522	ZDPM-3545
Front and back travel	mm	2200	4500
Left and right travel	mm	3500	3500
Lifting stroke	mm	250	250
Main motor power	kw	15	15
Total Power	kw	19	19
Outline dimension	mm	6000x4250x1550	6000x6450x1550
Water consumption	m³/h	3	3
Grinding head type	/	Six-claw grinding head	Six-claw grinding head
Number of grinding heads	pcs	1	1
Air compressor power	kw	3(Optional )	3(Optional )

Bridge-Type Architecture = Micron-Level Accuracy
Unlike gantry designs, the one-piece Meehanite® cast-iron bridge damps vibration and guarantees ±0.05 mm planarity across the entire table. The result: consistent scratch depth and perfect flatness on granite, marble, quartzite, or porcelain slabs up to 1 200 × 3 500 mm (ZDPM-3522) or 1 200 × 4 500 mm (ZDPM-3545).
15 kW of Servo-Controlled Muscle
The vector-controlled 15 kW main spindle delivers 300–3 000 rpm and real-time torque adjustment. Paired with the 6-claw planetary grinding head, it removes stock 30 % faster while using 20 % fewer abrasives compared to traditional three-claw heads.
Plug-and-Produce Automation

15-inch HMI with recipe library—scan a barcode and start the cycle.
Automatic thickness probing compensates for slab warpage on-the-fly.
OPC-UA & Modbus TCP built-in—ready for smart-factory dashboards.

Built for 24/7, Backed for 10 Years

Linear roller guides rated for 50 000 km of maintenance-free travel.
Auto-lubrication every 8 hours; centralized rinse station keeps downtime <5 min per shift.
10-year warranty on frame and bridge; global network of certified engineers for same-day remote diagnostics.

ROI You Can Measure
Installations in Brazil, India, and the UAE report:

25 % lower labor cost per m²
30 % reduction in abrasive spend
20 % increase in daily throughput

Optional Upgrades (Field-Retrofittable)

5-axis profiling head for ogee & bullnose edges
Laser slab mapper for automatic warp compensation
Closed-loop water recycling—<50 L fresh water per shift
Remote production app—monitor OEE from any smartphone

Ready to Ship
ZDPM-3522 and ZDPM-3545 are in stock for immediate dispatch. Contact our application engineers for a live Zoom demo or request a virtual Factory Acceptance Test today.

Call / WhatsApp: +86-13055673306
Email: grop@chinaxianda.com

Company Profile

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines in China, established in 2002and covers 20,000'area which located in Jinjiang Wuli lndustrial area, near by the longest and oldest stone bridge inthe world, named “Wuli Bridge"and next to biggest stone markets in the world- Shuitou. Close to the main port in
Fuiian-Xiamen port makes the shipment much more convenient.With 38 years experience specializing in developing and producing a series of column processing machinesbridge cuttina machines, diamond wire saw machinesprofilina linear machine. baluster cuttina machines. We occu-nied 80% market in China for column processing machines. and own 52 overseas countries users. Like Bussia.lndiaVietnam,Poland,Croatia.Bosnia,Albania,Latvia,France, Amenia,Uzbekistan,America.Canada,Brazil, Pakistan,SaudiArabia.UAESouth Africa,Eqypt,lran,Tunisie,Zambia.
After-sales service is available for overseas markets.
Since its foundation in 2002, we keep “Top Technology and Superior Quality"as our standard for all machinesand got CE,ISO9001 Quality Gold Award .etc.“China Recommend Building Manufacture Enterprise”,“3A Enterprise Credit Evalution”, etc for company. Anowe are alwavs the sponsor for education as our CEO Mr Rov is enthusiastic about the public welfare establishments.Xianda always keep "Creat the highest value of vour stoneas purpose, and offers the best stone cuttind solutioncustomers from both domestic and overseas.
Your visiting and contactina is alwavs welcomed, We looking forward to serve vou.
