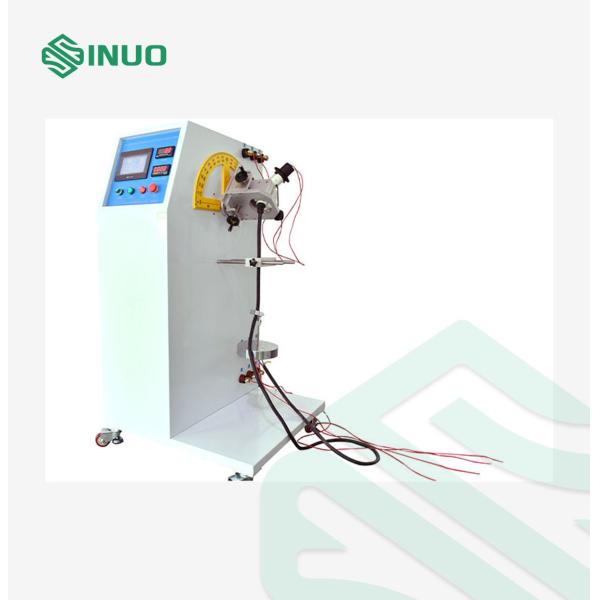

EV Charging Connector Flexibility Testing Equipment Durability Tester IEC 62196

EV Charging Connector Flexibility Testing Equipment Durability Tester IEC 62196

Complied Standards & Clauses

Conforms to IEC62196-1:2014 clause 7.11 and clause 7.15, IEC60309-1:2012 clause 24.4.

Product Overview

The EV Plug Flexibility Testing Machine is specifically designed to evaluate the mechanical strength of electric vehicle charging connectors, industrial plugs, sockets, and couplers. It focuses on testing the flexing performance at the cable entry point — a critical area subjected to repeated bending in real-world usage.

This high-precision apparatus operates based on IEC standards, using a servo motor to drive a turntable that oscillates the test sample left and right. Once the pre-set number of flexing cycles is reached, the system automatically stops and signals test completion. The intelligent servo control ensures accurate, repeatable swing angles and minimal lateral displacement, safeguarding test reliability.

Large-size samples can be securely mounted on durable aluminum plates, with the swing axis precisely aligned with the cord entry point to simulate real application stresses. This reduces unnecessary strain and ensures a more authentic mechanical simulation.

Built to support heavy-duty testing environments, the machine runs on AC220V±10% / 50–60Hz power input and delivers stable operation with a 3KW power rating. Ideal for R&D labs, compliance testing, and quality assurance of EV connectors and industrial-grade power components.

Technical Parameters

Sinuo Testing Equipment Co., Limited established in 2019, but Sinuo has rich experience in manufacturing test euipment, test system and offering overall laboratory construction of electronic and electrical products. Sinuo's main products include electrical vehicle test equipment, battery testing equipment, electromagnetic compatibility (EMC) test system, environmental testing equipment, fire retardant test equipment, dust-proof waterproof testing equipment and electrical appliances testing equipment. Our products covering electrical vehicle, electric power, communication, electrical appliances and electronic devices industries.

Sinuo has a professional technical research and development team, which is proficient in various international standards such AS IEC, ISO, EN, VDE, BS, AS, ASTM, GB and industry standards such AS MBN LV124, VW-80000. We master physical mechanics, heat, electricity, fluid and other theoretical knowledge in the application of equipment. And continue to focus on industry standard equipment performance optimization, operation simplification and equipment stability and reliability improvement.

Sinuo has two factories in Guangzhou and Dongguan, and cooperates with many research institutions and schools. Our R&D and production capacity are in the forefront. We have authorized agents in South Korea, the United States, South Africa, Egypt, Pakistan, the Philippines and other places, we serve customers BV, CSA, Intertek, SGS, TUV and other internationally renowned testing and certification institutions, local government quality inspection departments and production factories.
