Fast Connection Front Service Fixed Led Panel , HD P4 Led Screen Epistar Chip Type

Brand Name:OEM
Model Number:LR-F-PH4
Minimum Order Quantity:1 Piece
Place of Origin:Guangdong, China
Price:Negotiable
Product name:Outdoor p4 led display
Contact Now

Add to Cart

Active Member
Location: Shenzhen Guangdong China
Address: Building C/D,longrun industrial area ,NO.1001-3 Xihuan Road Shangxing West Industrial Park, Shajing street,Bao'an District,Shenzhen,China
Supplier`s last login times: within 35 hours
Product Details Company Profile
Product Details

Fast Connection Front Service Fixed Led Panel , HD P4 Led Screen Epistar Chip Type


Specifications
Module specification
LED configuration3 in 1
Pixel pitchP4
LED lampSMD1919
Module resolution48*48
Module size192*192mm
Cabinet specification

Module array

4*8pcs
Cabinet resolution192*384
Cabinet size768*1536mm
Display area1.18sqm
Flatness<0.2
Optical specification
Brightness2800-3000cd/sqm
Scan mode1/8s
Refresh rate1920Hz
Horizontal viewing angle140degree
Vertical viewing angle120degree
Contrast ratio8000:1
Eletrical specification
Cabinet power consumption1180w
Average power consumption390w
Power supplyAV 110V/220V (50/60Hz)
Operation specification
Lifespan100,000 hours
Operation temperature-10~+60
Storage temperature-10~+50
Operation humidity10%~80%
Storage humidity40%~60%

Product Description

√ Low brightness, high contrast ratio 8000:1, can play the real color under direct sunlight.


√ Environmental protection. Can perfectly reduce light pollution problem, good for eyes.


√ Front service to meet wall mounted installation. Easy for maintenance.


√ High quality thermal conductivity material for cabinet back, excellent ventilated design for heat dissipation, improving the stability and lifespan of screen.

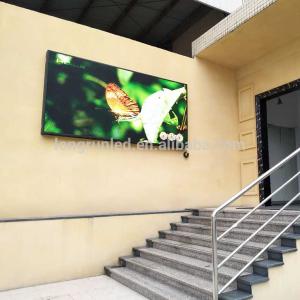

Successful Case Show


Company Information

Shenzhen Longrun LED Optelectronic CO.,LTD, a professional LED display manufacturer engaging in R&D, manufacture and sales,which started its business since 2009. Its factories locate in Huazhan Science & Technology Industrial Park, West Shangxin Industrial Park, which are neotype high standard industrial parks in Baoan, Shenzhen. Two production bases are conjunct with each other, cover an area of 12000 square meters, total register capital reach 10 million RMB. Being one of the domestic leading suppliers inLED product application and solution, Longrun has separate purification plant, R&D base, and the industry’s most advanced automated production and testing equipment. It dedicates in providing terminal clients with LED applications of high quality and performance and also with the most effective service.


Our Services

  1. Reply your inquiry in 12 hours.
  2. Experienced staffs answer all your query in fluent English.
  3. Customized design is available, OEM & ODM are welcomed.
  4. Exclusive and unique solution can be provided to our customer by our well-trained and professional staffs.
FAQ

Q: What is the brightness, viewing angle and wavelength of the LED?
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the on-axis peak to the off-axis point where the LED intensity is 50% of the on-axis intensity. This off-axis point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.
Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize
Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively.
A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color
Q: Which chip vendors are you buying from?
A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan
Q: What is the chip size you're using for outdoor display? How about indoor display?
A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted
Q: How much will the brightness of LED drop down after 1000hrs?
A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%
