360° Rotating Free Standing LCD Signage Display
Certification:CCC,RoHS
Model Number:Rotating Touch Kiosk
Place of Origin:China
Dimention:43" 49" 55"
Brightness(cd/m2):300~400cd
Power:<100W
Contact Now
Add to Cart
Active Member
Location:
Shenzhen Guangdong China
Address:
4F, Yijing Industry Park, Songbai Road,Guangming District, Shenzhen, China
Supplier`s last login times:
within 1 hours
Product Details
Company Profile
Product Details

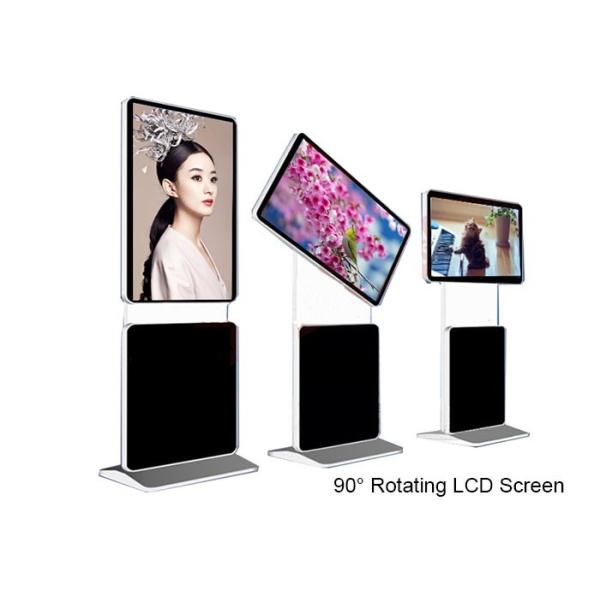

LG Free Standing LCD 360° Intelligent Rotating Touch Kiosk Digital Signage
The working Principle of Standalone version rotatable lcd kiosk :
The PCB support Plug-and-Play function.You need save those ads
content in USB memory card firstly, and then, when you plug memory
card into the card slot, the screen will auto display video or
photo. When you need update ads content in original USB memory
card, you only need use USB copy by manual operation .
| Type | Indoor LCD Rotating Screen |
| Size | 42inch |
| Frame size(mm) | 1004x597x60mm |
| Visual size(mm) | 941x529 |
| Power | <100W |
| Panel material | Tempered Glass |
| Frame material | Aluminium Alloy+Metal |
| Frame colors | Black/Silver/Golden(Optional) |
| Screen brand | LG/Samsumg Original Brand |
| Back light | LED backlit |
| Brightness(cd/m2) | 300-400 |
| Resolution(Pixel) | 1920x1080(Full HD) |
| View angle | 178°/178° |
| Contrast Ration | 1000: 1 |
| Display colors | 16.7 Mil(8-bit) |
| Display ration | 16:09 |
| Response time | 6ms |
| Lifetime(H) | 70000 hours |
| Voltage | AC100-240V/50-60Hz |
| Operation System | Andriod 4.2 Version/ Windows 7,8.1,10 (Optional) |
| Touch Function | Infrared Touch/ Capactive Touch (Optional) |
| Expand function | 3G/4G, Camera, Card reader (Optional) |
| USB port | 2*USB, 1*HDMI, 1*FT, 1*RJ45 |
| Network | LAN,WIFI,Bluetooth,Wireless internet(Optional),can play program by USB/SD card directly |
| Video format | WMV,AVI,FLV,RM,RMVB,MPEG,TS,MP4 |
| Picture format | BMP,JPEG,PNG,GIF,etc |
| Working Temperature | -20ºC~40ºC |
| Storage Temperature | -20ºC~60ºC |
| Scheduling playback | Publish task by calendar,then appointed terminal/terminals,play accordingly,group management online via network |
| Rolling caption | With the running marquee function (roll caption, text bar) |
| Management software | With management software installed in server by which to control and group manage all terminals |
| Warranty | One year |
Specification and features:
Simple and ease use Digital Signage System
(low consumption, Stable, free license, flexible of any new
features added)
· Support High resolution content file, MAX to 720P
· Supported Video file: MPEG1,MPEG2,MPEG4,H.264,WMV,MKV,TS,flv.
· Supported Audio file: MP3, WMA
· Supported Picture file: JPG,JPEG,BMP,PNG,GIF
· Supported Text file: TXT,XML
· Storage: SD card and U DISK, MAX to 32GB
· Language: Chinese, English, other language is available if
required.
· Simple content scheduling and updating for each display-just by
inserting the usb disks that have stored the contents to play.
·Support to set multiple sessions to automatically turn on and off
with IR remote controller or mouse.
·Deliver high definition image content.
·Support videos,pictures,scrolling text and many other combinations
of multi media play mode.
·Support playing list control,play order setting,and automatically
play circularly.
·Free intelligent programming system,easy to use.
.Support USB directly play and copy between two USB disks.
Other solutions:
If you need more higher configuration,RK3288 QUAD core /A83T Eight core/PC version is optional.
Solution A. Network version
Suitable for many qty of advertising player to control, free software to install and manage the players remotely,also support USB
Solution B. Anroid 5.1 RK3288
Suitbable for many players to control to play the ads.
Can install the apps,scan the webpage,etc. and add touch function.
Solution C. PC version
Acts like a PC.Can be installed the software and add touch function
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in advertising products since 2000 located in Foshan.
2. Q: Could make customized frame design for LCD?
A: Yes,we have own steel structure frame factory. Can make customized design.
3. Q: I would like to ask you if it's possible to have my logo on the product.
A: Customized logo available based on your requirements.
4. Q: What brand of screen do you use?
A: Original LG screen, we can guarantee each display will pass through strict quality inspection.
