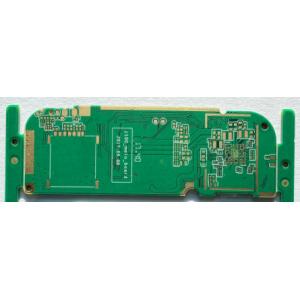

KB FR4 ENIG Surface 4oz 4mil Prototype Pcb Fabrication
Brand Name:ACCPCB
Certification:ISO,SGS,TS16949
Model Number:S10212
Minimum Order Quantity:1 PCS
Delivery Time:3-5days
Payment Terms:T/T ,Western Union,Paypal
Contact Now
Add to Cart
Verified Supplier
Location:
Shenzhen Guangdong China
Address:
10F,Qiurui Plaza, Minkang Rd, Baoan District, Shenzhen, 518131, China
Supplier`s last login times:
within 2 hours
Product Details
Company Profile
Product Details
FAQ :
1. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
2. What kinds of boards can ACCPCB process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
4. How do ACCPCB ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008
standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying
Probe,e-Testing, X-ray Inspection, AOI (Automated Optical
Inspector) .
1.4.Dedicated quality assurance team with failure case analysis
process
5. How many types of surface finish ACCPCB can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
KB FR4 ENIG Surface 4oz 4mil Prototype Pcb Fabrication
