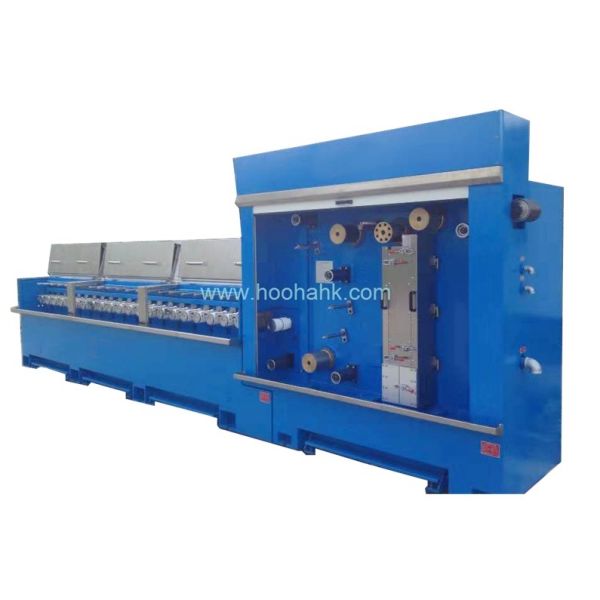

160KW 1200M/Min 8mm Rod Breakdown Wire Drawing Machine
Brand Name:HOOHA
Certification:CE/ISO
Model Number:HH-D-400
Minimum Order Quantity:1 set
Delivery Time:60 Working Days
Payment Terms:L/C, T/T
Contact Now
Add to Cart
Active Member
Location:
Dongguan Guangdong China
Address:
No.53,Bochong Road,Humen Town,Dongguan City,Guangdong Province,China
Supplier`s last login times:
within 27 hours
Product Details
Company Profile
Product Details
High Efficiency Copper Rod Break Down Wire Drawing Machine from 8mm to 1.2-3.5mm
The rod breakdown machine is basically capable of drawing wire down
to diameters between 1.2 and 3.5 mm. Some 85 % of the material
processed will serve as 1.8 mm input wire fed into our single and
multi-wire drawing lines.
Youtube Video Reference:
https://www.youtube.com/watch?v=rg227TjsMno
1. Host Drawing Machine
| 1 | Suitable materials | Anaerobic round copper rod and aluminum alloy rod |
| 2 | Inlet Rod Dia.(mm) | 8-10mm |
| 3 | Outlet Wire Dia.(mm) | 1.2~3.5mm |
| 4 | Mechanics Speed(m/min) | Max 1500 |
| 5 | Capstan Dia.(mm) | Front 5 pcs 500mm, Rear 7 pcs 400mm |
| 6 | Constant Speed Capstan Dia.(mm) | 450mm |
| 7 | No. of Dies(Channel) | 13 |
| 8 | Dies Outlet Size(mm) | 50mm |
| 9 | Mechanics Elongation (%) | 15-41 |
| 10 | Main Motor Power(KW) | AC200 |
| 11 | Constant Speed Capstan Motor (KW) | AC55 |
| 12 | Lubricant Pump Motor(KW) | 4 |
| 13 | Drawing Coolant Mode | Full Immersion |
| 14 | Dimension(mm)L×W×H | 9000×1800×1200 |
| 15 | Machine Net Weight(kg) | About 17000 |
2. Annealing Machine
| 1 | Wire Size range of Annealing(mm) | 1.2~3.6 |
| 2 | Annealing Mode | Contact mode DC annealing |
| 3 | Max. annealing DC current (A) | 5000 |
| 4 | Max. annealing DC voltage (V) | 60 |
| 5 | Dehydration Die Dia. (mm) | 55 |
| 6 | Capacity of annealer transformer (KVA) | 425 |
| 7 | Power of Steam Generation (KW) | 18 |
| 8 | The amount of steam (Kg/h) | 20 |
| 9 | Dimension(mm) L×W×H | 4250×1200×2500 |
| 10 | Machine Net Weight(kg) | About 4500 |
3. Take-up Machine
| 1 | Max. Coiling Speed(m/min) | 1300 |
| 2 | Dia. of Wire Take Up(mm) | 1.2~3.6 |
| 3 | Coiler Basket Dia.(mm) | 800 |
| 4 | Size of Take up | Φ630mm |
| 5 | Take Up Motor(kw) | AC 18.5 |
| 6 | Transport Reel Motor(kw) | 0.75 |
| 7 | Dimension(mm) L×W×H | 4280×3800×4550 |
| 8 | Machine Net Weight(kg) | About 5000 |
Normal way is, clear PE film wrapped, wooden frame packed, loaded
into container and shipped by sea. Special packaging way could be
acceptable.
1.Design. Our engineers keep study in industry and work with sales
to learn more about customer feedback, then improve our machines
accordingly.
2.Quality. We emphasis quality at the first place. This is why we
keep developing and getting stronger.
3.Customers' success. We not only focus on the sales of products,
but also pay attention to the development of our customers. We
pursue growing together with customers by providing long-term
support and suggestions to help them achieve success.
4.Supply more environmentally friendly products.
5.Feed back to the community and help more people.
Q1:What is your main brands for the electrical and mechanical
parts?
A:Oversea famous brand parts such as German siemens motor, Japanese
nsk bearing and yaskawa inverter etc.
Q2:What is your advantage with other suppliers?
A:What we can offer to our clients is not only the machine itself, but also offer: factory design, production process design, talent training, assist machine and raw material offering .
A:What we can offer to our clients is not only the machine itself, but also offer: factory design, production process design, talent training, assist machine and raw material offering .
Q3:What's the payment terms?
A:T/T or L/C, 50% deposit and 50% balance before delivery, can be discussed also.
Q4:How long for the guarantee?
A: One year and charge for maintenance and upgrade in the whole life.
Q5: Do you have a video to show the machine running ?
A. Yes, you can visit our youtube channel : tiezhong chi.
