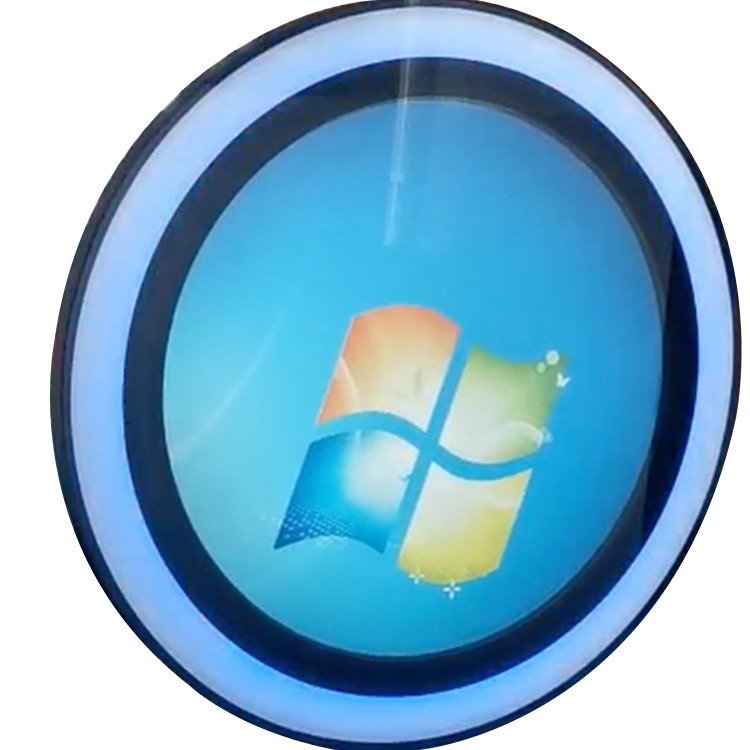

HDMI 30W 23.6" 700cd/m2 TFT LCD Circular Monitor
Brand Name:rCloud
Certification:CE.FC,Rohs
Model Number:RCS-TM236R-LED
Minimum Order Quantity:1PCS
Delivery Time:5-8 work days
Payment Terms:T/T, Western Union,Paypal, L/C
Contact Now
Add to Cart
Verified Supplier
Location:
Shenzhen Guangdong China
Address:
206, Qiaotou Community, Fuyong Street, Baoan District, Shenzhen, China
Supplier`s last login times:
within 17 hours
Product Details
Company Profile
Product Details
New 23.6" circular LED bezel Gaming Monitor with high brightness
Features:
⚫Strengthened cover glass with 7H tempered glass optically bonded to a LCD.
⚫The pure flat panel IP65 protection grade design effectively prevents dust,water droplets,etc.increasing
the service life and greatly improving the running stability.
⚫ LED Halo Effects on around the Edge of the frame
Product Specifications:
| LCD Monitor | ||
| Model No. | RCS-TM236R-LED | |
| Series | LED Deco Slim(LED Bezel) | |
| Display Type | Circle type, 23.6 inch TFT-LCD | |
| Active Area | 600.38 x 600.38 (mm) | |
| Monitor Dimensions (WxHxD) | 807 x 807 x 70(mm) | |
| Suggested Resolution | 1920 x 1080 @60Hz,FHD, 1080P | |
| Support Colors | 16.7M | |
Brightness (Typ.) | Pure LCD Panel | 700cd/m2 |
| With Cover glass | 600cd/m2 | |
| Response Time (Typ.) | 16 ms | |
| Viewing Angle (Typ.atCR＞10)) | Horizontal (left/right) | 89°/ 89° |
| Vertical (up/down) | 89°/ 89° | |
| Contrast Ratio (Typ.) | 4000 : 1 | |
| Video Input | VGA/HDMI | |
| Frequency (H/V) | 60～73Hz / 47～63Hz | |
Power Supply | Type: Internal Display voltage: DC12V±5% Input(line) voltage: AC100-240VAC,50-60Hz | |
Environment | Operating Temp. | 0～50°C |
| Operating RH | 10%～90% | |
| Storage Temp. | -20～60°C | |
| Storage RH | 5%～90% | |
| MTBF | ≥30,000 Hours | |
| LED Backlight Life Time (Typ.) | ≥30,000 Hours | |
| Weight(N.W/G.W) | 27.5Kg/28.5Kg | |
| Dimensions | 807 x 807 x 70 (mm) | |
| Power Consumption | Stand by Power:≤1.5W/Operating Power:≤30W | |
| Mount Interface | 1. 100 x 200mm 2. Mount bracket, horizontal or vertical mount | |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness,Contrast Ratio,Auto-adjust,Phase,Clock,H/V Location,Languages,Function,Reset | |
| LED | SMD 5050, 60 LEDs/m | |
| LED IC / Power | WS2812, 14.4W/m, 12V | |
Cover Glass | |
| Hardness | Min.7H |
| Light Transmittance | ≥85% |
| Cover Glass Thickness | 3.0±0.2 mm |
| View Area | 603.38 x 603.38(mm) |
PRODUCTS IMAGES
HDMI 30W 23.6" 700cd/m2 TFT LCD Circular Monitor
