Automatic Box Window Patch machine -TC1100/TC1000

Application

Ecoo TC-1100,TC-1000 automatic window patching machines are special equipment for carton box, color box window lamination; They are advanced models in domestic market. Perfect personalization design philosophy ensures the machines have the feature of high efficiency, high-precision, high stability and easy operation.

These machines are available for both cardboard and corrugated paper. Adopting servo feeder, flexible version module of glue print, stable and accurate diaphragm incision and cross cutting cropped to achieve tissue boxes, gift boxes, toy boxes, shirt boxes, milk cartons and other window film lamination.



Technical data

Window Patching Machine
ModelEcoo-TC1100Ecoo-TC1000
The producting style1-lane operation2-lane operation1-lane operation
Length A of the blank paper100mm-900mm100mm-900mm100mm-420mm
Width B of the blank paper80mm-1100mm80mm-530mm80mm-750mm
Length window/lining material C80mm-760mm80mm-760mm80mm-280mm
Width window/lining material D30mm-940mm30mm-380mm30mm-550mm
Speed of the machine200pcs/min400pcs/min200pcs/min
Carton weight
Carton200g/m2-600g/m2
Corrugated1.5mm
Film thickness
PVC, PE, PS0.05mm-0.3mm
PET0.05mm-0.2mm
Outer diameter500mm
Inner diameter75mm70mm-80mm
The size of the machine5600(L)x2000(W)x1500(H)mm
Main motor power4kw
Total power22kw

Application

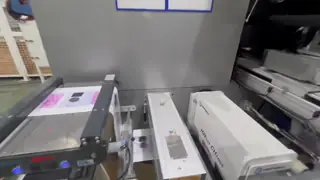

China Automatic box window patching machine supplier
