Electronic Universal Testing Machine / Dyno Testing Machine

Electronic Universal Testing Machine/Dyno Testing Machine

Introduction

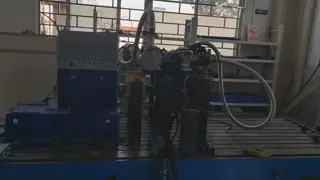

The test bench is mainly composed of: electric dynamometer, frequency conversion inverter system, XLP1000 control system , data acquisition system, test motor mounting bracket, installation base plate, coupling, cabinet .Including:

1. Electric dynamometer

As the loading equipment of the motor, .electric dynamometer is mainly composed of AC motor , torque measuring device, etc. Special AC variable frequency motor is used for electric dynamometer. The electric dynamometer is equipped with speed and torque measuring device, which can be used for direct torque and speed measurement.
2. Frequency conversion inverter system
The frequency conversion control system is used to control the electric dynamometer; so that the electric dynamometer can load the motor in the forward direction, and the motor can be dragged in the reverse direction at the same time;
3. XLP1000 control software
The XLP1000 system of our company is used for the motor test bench; the XLP1000 control system communicates with the variable frequency inverter system through the CAN bus to complete the setting and control of the working condition ; XLP1000 control system accepts motor parameters collected by data acquisition system through RS485 serial port, at the same time, XLP1000 control system integrates external auxiliary equipment, centralized communication and control; The whole testing process of the motor can be automatically controlled.

Characteristic curve

Seelong Intelligent Technology (Luoyang) Co., Ltd. is a high-tech enterprise specializing in equipment measurement, control, design, manufacturing, and sales services for power engineering systems in various fields such as aerospace, automotive, and new energy; The company is located in the beautiful peony city of Luoyang.

Seelong specializes in the research and development, production, and service of testing equipment for new energy motors, hybrid power systems, engines, transmissions, and more. Our main products include electric dynamometers, measurement and control systems, DC power supplies, and working condition guarantee systems. Seelong has a complete sales and service system, adhering to the business philosophy of p rovid ing f ine q uality s ervices for s urviv al and k eep ing on r enovation for development, and providing users with various types of power engineering measurement and control solutions in various fields.

Seelong's advanced design philosophy and rich industry experience give the company a technological Advantages ahead of competitors in the same industry, and the company's products can better meet the actual market demand. Seelong is brave in innovation. While valuing its own technological breakthroughs and development, it has established long-term and in-depth cooperative relationships with multiple domestic research institutions such as Tsinghua University and Shandong University. It has passed CE certification, ISO9001 quality system certification, AAA level enterprise certification, obtained more than ten invention patents, and two software copyrights. It has provided professional equipment and services to more than a hundred users both domestically and internationally, The enterprise has won the trust of domestic and foreign customers with its cost-effective products and high-quality services, and has established a long-term win-win strategic partnership.

The company always adheres to the business philosophy of "taking technological innovation as its mission and quality service as its purpose", constantly surpassing the advanced level in the same industry, integrating into the world, measuring and controlling the future, and creating high-quality products. To provide customers with products and services with high intelligence, precision, speed, reliability, and added value.

All employees of Seelong Intelligent Technology (Luoyang) Co., Ltd. warmly welcome sincere cooperation from domestic and foreign customers, and work together for the future and common development.
