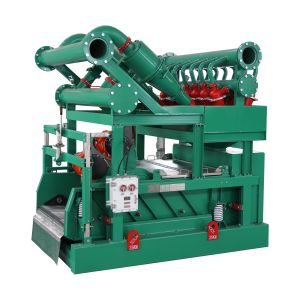

Sand and mud removal machine Maximum throughput 200 -240 m³/h
Descriptions of Sand and mud removal machine Maximum throughput 200 -240 m³/h:
The drilling fluid sand and mud removal integrated machine is mainly composed of a sand remover, a mud remover and a vibrating screen. It is one of the main equipment for solid phase control of drilling fluids. Its function is to remove harmful solid phases and improve drilling fluid performance. The separation particle size of the desander is 44-74 μm, and the separation particle size of the desander is 20-44 μm. The maximum mesh size of the vibrating screen mesh is 360 mesh. The hydrocyclone of the sand and mud removal machine is made of wear-resistant materials, with reliable performance, good separation effect and long service life.
Specifications:
| Model | ZQJ250X2/100X14 | ZQJ300X2/125X14 | |
| project | |||
| Desander | Maximum throughput m³/h | 200 | 240 |
| Cyclone nominal diameter mm | 250 | 300 | |
| Number of cyclones | 2 | 2 | |
| Fixed work stress kPa | 200-400 | 200-400 | |
| Desilter | Maximum throughput m³/h | 200 | 240 |
| Cyclone nominal diameter mm | 100 | 125 | |
| Number of cyclones | 14 | 14 | |
| Fixed work stress kPa | 200-400 | 200-400 | |
| Vibrating screen | Motor Power kW | 2.2+2.2 | 2.2+2.2 |
| Violent force kN | 38+38 | 38+38 | |
| Amplitude mm | 7 | 7 | |
| Total screen area ㎡ | 2.7 | 2.7 | |
| Screen quantity | 4 | 4 | |
| Maximum mesh size of screen | 360 | 360 | |
| Total mass kg | 3800 | 4200 | |
