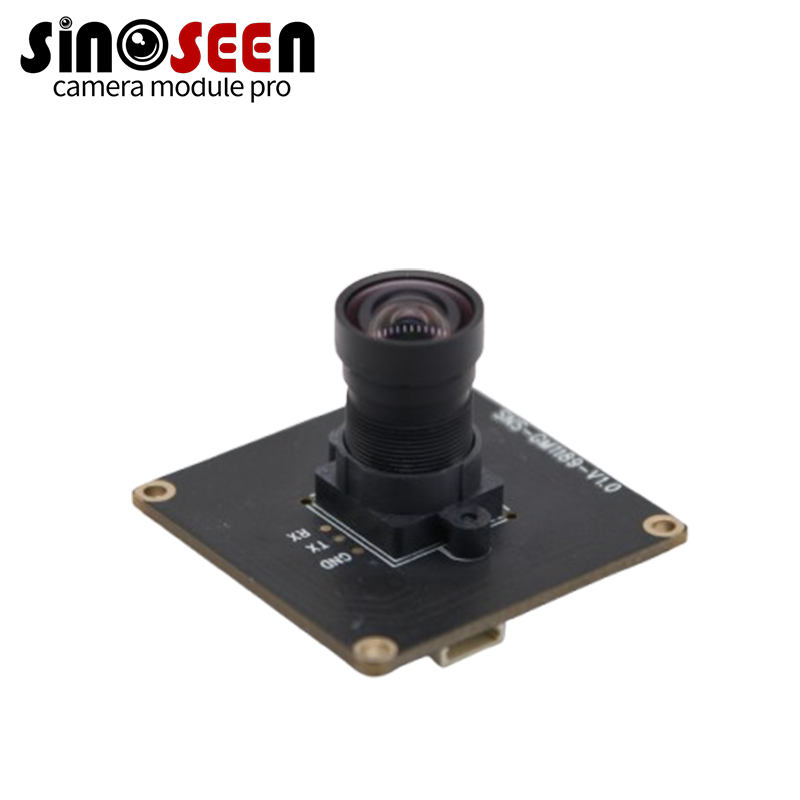

2MP CMOS Image Sensor with 1/2.44 Inch Format and 97 Degree Wide Angle Lens Featuring Raw Bayer 10-bit Data Output
Brand Name:Sinoseen
Certification:RoHS
Model Number:SNS-GM1189-V1.0
Minimum Order Quantity:5
Delivery Time:2-3week
Payment Terms:T/T
Contact Now
Add to Cart
Verified Supplier
Location:
Shenzhen Guangdong China
Address:
CN , Guangdong , Shenzhen , Floor 501, Building P, No. 17, Chuangxin Industrial Park, Xintian Community, Guanhu Street, Longhua District
Supplier`s last login times:
within 1 hours
Product Details
Company Profile
Product Details
Product Description
This 2MP CMOS sensor offers an effective resolution of 1920x1536 pixels and supports Full HD video at 30fps. With a 1/2.44 inch format and 97° wide angle lens, it captures more detail in every frame.
The sensor uses a USB2.0 interface for stable data transfer at 480MB/s, and supports MJPG video output with Raw Bayer 10-bit data.
It is driver-free plug-and-play, compatible with Windows, Mac, Linux, and Android systems, making it easy to integrate into different devices.
Designed for surveillance, video conferencing, industrial vision, and access control, it provides reliable imaging with low distortion and natural color reproduction.
Highlights
2MP effective pixels
Full HD 30fps video
97° wide angle lens
Plug-and-play USB2.0
| Item | Specification |
|---|---|
| Model | Signal SNS-GM1189-V1.0 |
| Image Sensor Size | 1/2.44” inch |
| Effective Pixels | 1920 × 1536 |
| Pixel Size | 3.0 µm × 3.0 µm |
| Image Sensor Data Output | Raw Bayer 10 bits |
| Video Output Format | MJPG |
| Maximum Resolution & Frame Rates | - 1920 × 1536 → 30 FPS - 1920 × 1080 → 30 FPS |
| SNR (Max) | TBD |
| Dynamic Range | TBD |
| Minimum Illumination | TBD |
| Digital Interface | USB2.0 / 1.0 / 5-pin cable (1.5 m length) |
| Transfer Rates | 480 MB/s |
| Power Requirements | 5V ±5% |
| Power Consumption | NO LED / IR-LED / PCB printing ink black |
| Storage Temperature | -40°C ~ 70°C |
| Operating Temperature | -30°C ~ 60°C |
| Operating System Support | Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported) |
| Effective Focal Length (EFL) | 3.24 mm ±5% |
| F/NO (Aperture) | 2.2 ±5% |
| Field of View (FOV) | D: 97° ±3° |
| Optical Distortion | < -1% |
| Lens Construction | 4G2P + IR |
| Lens View (Default Lens) | M12 × P0.5 |
| Focus Type | Fixed focus |
| Shooting Distance | 60 cm ~ ∞ |
