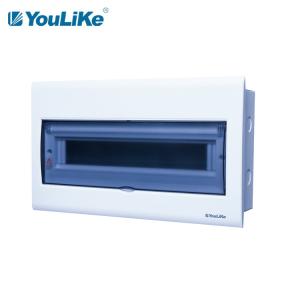

IP40 MCB Distribution Box
Brand Name:YOULIKE
Certification:CCC, CE
Model Number:M3 flush
Minimum Order Quantity:100pcs
Delivery Time:10-20 working days
Payment Terms:L/C, D/P, T/T
Contact Now
Add to Cart
Active Member
Location:
Chengdu Sichuan China
Address:
709#, sector 2, 260# Zhaojuesi Road South, Chengdu city, Sichuan province, P.R.C.
Supplier`s last login times:
within 32 hours
Product Details
Company Profile
Product Details
IP40 Home Use Indoor 18 Ways Newest Electrical Plastic Switch Box MCB Distribution Box
Product Advantage
1. Strong box for durability.
2. Curved panel, matte process.
3. Rail btacket to prevent deformation.
4. High-quality copper bar, sturdy and durable.
5. Optimize the details to meet your needs.
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Main Features
1. High impact resistance material:PC,ABS.
2. Safe and full material copper terminals.
3. Adjustable din-rail:move ascend and descend.
4. Ultra-large space box for moving and easy wiring.
5. Flush mounting and surface mounting available.
6. Function of Distribution box:protect MCB and other devices.
Specifications of M3 series, Flush
| Model | Way | Cover size | Box size | Terminals | Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
M3-A 110 | 10way | 278×240×20.0(29.0) | 256×210×90×1.0 | 6×10.4 | 8 | 9 | 5 |
M3-A 112 | 12way | 316×240×20.0(29.0) | 292×210×90×1.0 | 6×10.4 | 8 | 9 | 6 |
M3-A 114 | 14way | 352×240×20.0(29.0) | 328×210×90×1.0 | 6×10.4 | 8 | 9 | 7 |
M3-A 116 | 16way | 388×252×20.0(29.0) | 364×210×90×1.0 | 6×10.4 | 11 | 12 | 7 |
M3-A 118 | 18way | 424×252×20.0(29.0) | 400×210×90×1.0 | 6×10.4 | 11 | 12 | 10 |
M3-A 120 | 20way | 460×252×20.0(29.0) | 436×210×90×1.0 | 6×10.4 | 11 | 12 | 10 |
M3-A 224 | 24way | 316×415×22.3(31.3) | 292×380×90×1.0 | 6.4×12 | 12 | 13 | 8 |
M3-A 232 | 32way | 388×415×22.3(31.3) | 364×380×90×1.0 | 6.4×12 | 14 | 15 | 10 |
M3-A 240 | 40way | 460×415×22.3(31.3) | 436×380×90×1.0 | 6.4×12 | 17 | 18 | 12 |
Company Demonstration
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| M3-A 110 | 595×300×515 | 0.0919 | 10 | 17.10 | |
| M3-A 112 | 595×340×515 | 0.1042 | 10 | 9.25 | |
| M3-A 114 | 595×260×380 | 0.0588 | 5 | 10.20 | |
| M3-A 116 | 595×275×420 | 0.0687 | 5 | 11.65 | |
| M3-A 118 | 595×275×455 | 0.0744 | 5 | 12.40 | |
| M3-A 120 | 595×275×490 | 0.0801 | 5 | 5.40 | |
| M3-A 224 | 465×155×375 | 0.0270 | 1 | 6.70 | |
| M3-A 232 | 465×155×445 | 0.0327 | 1 | 3.60 | |
| M3-A 240 | 465×155×520 | 0.0375 | 1 | 4.05 | |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness).
2. Order arrangement
* ≤15 days stable delivery.
* specific MOQ.
* multiple payment terms.
* order status update.
3. Additional service
* 7X24 respondence service.
* on site service.
* quality discrepancy handle.
* accessories coordination.
