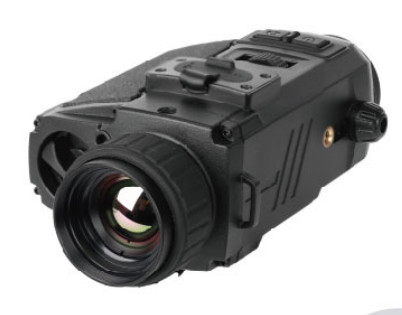

FW-DS325 Thermal Imaging Monocular with 384*288 Vanadium Oxide Uncooled Focal Plane 1440×1080 OLED Display and IP67 Waterproof Dustproof

Brand Name:Forward
Model Number:FW-DS325
Minimum Order Quantity:1 set
Delivery Time:5-8 work days
Payment Terms:L/C,T/T
Place of Origin:China
Contact Now

Add to Cart

Verified Supplier
Address: Unit 4, Block B, Xi'an OE Park, No. 77, Keji 2nd Road, High-tech Zone, Xi'an, 710075, Shaanxi
Supplier`s last login times: within 21 hours
Product Details Company Profile
Product Details

Features of FW-DS325 Multifunctional combined tactical infrared thermal imaging

  • 384*288 Vanadium Oxide Uncooled Focal Plane
  • Free combination, multi-functional tactical telescope, long-distance precise ranging and dual-light fusion.
  • 0.49inch,color OLED,resolution 1440*1080
  • IP67 waterproof and dustproof, 2 meters drop-resistant

Specifications of FW-DS325 Multifunctional combined tactical infrared thermal imaging


Detector TypeVanadium Oxide Uncooled Focal Plane
Resolution384*288
Pixel spacing12μm
NETD≤20mk@25℃/F#=1.0
Frame rate50Hz
Focal distance25mm/F1.0
FOV10.6°*7.9°
Image modeWhite hot, black hot, green hot, iron red, red hot, forest
Minimum focus distance2m
FocusManual focus
Display0.49inch,color OLED,resolution1440*1080
Accuracy±1m
Electronic zoomX1.0-8.0
Picture-in-PictureYES
Hot Spot TrackingYES
WIFIYES
Storage32GB
Electronic compassYES
Laser pointerYES
Low illumination module resolution200W
FOV18.9°*10.7°
StorageRecord video, take photos, and support local video playback
Weight≤420g
Size167mm*84mm*62mm
WIFIYES,Connect to Android APP
Detection distancePepole 1.8m*0.5m 1100m
Car 2.3m*2.3m 1600m
Identification distancePepole 1.8m*0.5m 550m
Car 2.3m*2.3m 800m
