375nm with maximum laser power 200mW UV Laser Diode Modules


We offer UV diode lasers at the laser wavelength of 375nm with maximum laser power 200mW. These lasers are widely used in scientific, medical, industrial and entertainment applications.

  • Laser power is stable and adjustable

  • Protected with overheating and over current

  • Can be externally controled with high speed modulation

  • Suitable for scientific research, medical treatment, biological engineering, stage laser show, etc

List of UV Diode Lasers

Part NumberWavelengthLaser Power
ST-I-DC-375-20375nm20mW
ST-I-DC-375-50375nm50mW
ST-I-DC-375-100375nm100mW
ST-I-DC-375-150375nm150mW
ST-I-DC-375-200375nm200mW

Detailed Specifications

Part NumberST-I-DC-375-xxx
Wavelength (nm)375
Operation ModeCW
Beam ModeTEM00
Output Power (mW)20/50/100/150/200
Average Power Stability (Over 4hrs)<1%/<3%/<5%
Beam Divergence (full angle, mrad)1.2
Beam Diameter at Aperture (mm)<1.5
Beam Height from Base Plate27
Warm-up Time (min)<10
CoolingAir
Operation Tem. (oC)15-35

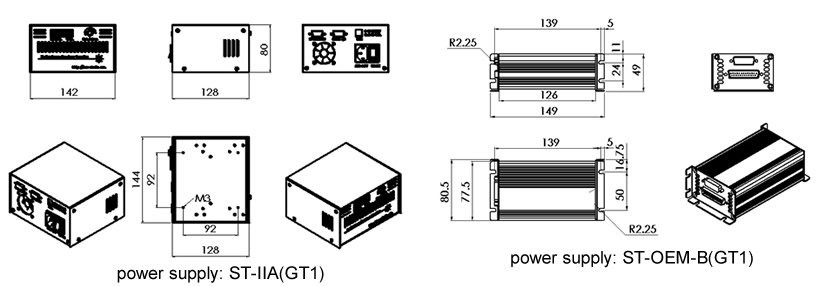

Power SupplyST-IIA(GT1)/ST-OEM-B(GT1)
Expected Lifetime (hrs)10,000

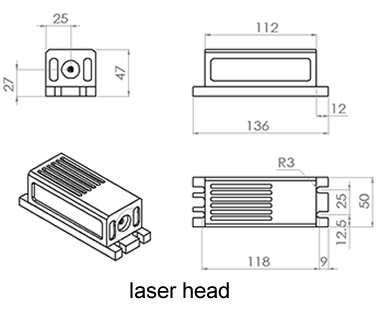

Laser Head Dimension (mm)136x50x47
Laser Head Weight (kg)0.5
Power Supply Dimension (mm)168x164x80/149x80.5x49
Power Supply Weight (kg)1.5/0.5

Remarks: 1) In the part number, xxx means laser power in mW or W; 2) Other power levels available upon request; 3) There are 3 average power stabilities for all lasers and default is 5%; 4) There are 2 types of power supplies: integrated and OEM. The power input of integrated is 110V-220VAC and the power input of OEM is 12VDC.
