Industrial Material Handling Trolley Intelligent Rail Transfer Trolley
Ferry Rails Transport Cart for construction

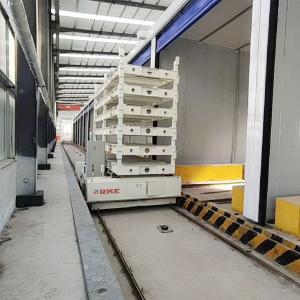

Ferry Rails Transport Cart is made up of two parts. The upper car is used for transporting cargo. The upper can can be equipped with V shape support, lifting platform. The down car is usually designed to run underground. The rail is mounted underneath the car and used for connecting with other rails in workshops which makes the upper car be able to run on parallel rails. The Crossing Ferry Rail Transport Cart can realize cargo transfer among crossing rails. It's more convenient and could be used separately compared with rotating platform.
We design transport cart for all kind of industries. Our versatility to manufacture this vehicle is proven by our experience and adaptations. These transport carts can be made according to our clients’ needs and with clear commitment to meet them.
The motorized transport cart' body is packed with tarp, and the wheel and parts of the motorized cart will be packed with wooden case. According the table size and quantity, the rail guided transport cart would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
| Technical parameters for Battery powered electric transfer carts KPX series | ||||||||||
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 | |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | 270 | 300 | 300 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 | |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 | |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 | |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 | |
| 1,Load capacity, table size and rail gauge can be customized; 2,Options: Remote radio control (imported or made in china); 3,Automatic stop when detecting obstacle or person ,limit switches (to limit travel); 4,Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery); 5,Motor (DC motor with brush and DC motor brushless); 6,Electrical parts (imported or made in China). | ||||||||||
