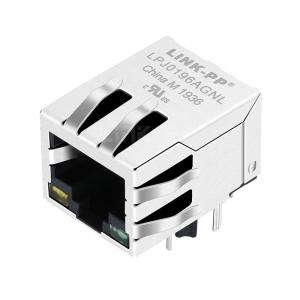

X Mutiple XPJG-01K-1-PK3-310 Compatible LINK-PP LPJ0196AGNL 10/100 Base-T RJ45 PoE Magnetic Jacks Single Port Tab Down Yellow/Green Led
Brand Name:LINK-PP
Certification:UL,ROHS,Reach,ISO
Model Number:LPJ0196AGNL
Place of Origin:Guangdong,China
Compatible:X Mutiple
Competitor P/N:XPJG-01K-1-PK3-310
Contact Now
Add to Cart
Verified Supplier
Location:
Huizhou Guangdong China
Address:
No.54, South of jinhu Road, Chengjiang Town, Zhongkai District, Huizhou City, 516229, Guangdong, China
Supplier`s last login times:
within 16 hours
Product Details
Company Profile
Product Details
X Mutiple XPJG-01K-1-PK3-310 Compatible LINK-PP LPJ0196AGNL 10/100 Base-T RJ45 PoE Magnetic Jack for Monitoring System and Smart Meters (POE, Single Port, Tab Down, Yellow/Green Led)
The LPJ0196AGNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Industrial PC, Hub and Smart Meters.
| LINK-PP Part Number: | LPJ0196AGNL | X Mutiple Part Number | XPJG-01K-1-PK3-310 |
| Part Status | Active | Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) | Application-Lan | Ethernet(PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | Down | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Yellow/Green |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.528/13.40 | Package Length (Inches/mm) | 0.839/21.30 |
| Package Width (Inches/mm) | 0.626/15.90 | Temperature | 0 TO 70℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
X Mutiple XPJG-01K-1-PK3-310 Compatible LINK-PP LPJ0196AGNL 10/100 Base-T RJ45 PoE Magnetic Jacks Single Port Tab Down Yellow/Green Led
