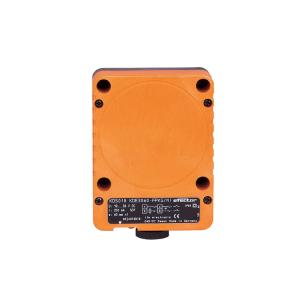

IFM Capacitive Sensor KD5018 KDE3060-FPKG/NI 105 X 80 X 40MM
Brand Name:IFM
Certification:3C
Model Number:KD5018
Minimum Order Quantity:1
Delivery Time:3 day
Payment Terms:T/T
Contact Now
Add to Cart
Verified Supplier
Location:
Xiamen Guangdong China
Address:
903-3, building F02, phase III Software Park, Jimei district, Xiamen city,CHINA (361000)
Supplier`s last login times:
within 1 hours
Product Details
Company Profile
Product Details
| KD5018 | |||||||||
| Capacitive sensor | |||||||||
| KDE3060-FPKG/NI | |||||||||
| Product characteristics | |||||||||
| Electrical design | PNP | ||||||||
| Output function | normally open / normally closed; (selectable) | ||||||||
| Sensing range [mm] | 60 | ||||||||
| Housing | rectangular | ||||||||
| Dimensions [mm] | 105 x 80 x 40 | ||||||||
| Electrical data | |||||||||
| Operating voltage [V] | 10...36 DC | ||||||||
| Current consumption [mA] | 15; (24 V) | ||||||||
| Protection class | II | ||||||||
| Reverse polarity protection | yes | ||||||||
| Outputs | |||||||||
| Electrical design | PNP | ||||||||
| Output function | normally open / normally closed; (selectable) | ||||||||
| Max. voltage drop switching output DC | [V] | 2.5 | |||||||
| Permanent current rating of switching output DC | [mA] | 250 | |||||||
| Switching frequency DC | [Hz] | 10 | |||||||
| Short-circuit proof | yes | ||||||||
| Overload protection | yes | ||||||||
| Detection zone | |||||||||
| Sensing range | [mm] | 60 | |||||||
| Real sensing range Sr | [mm] | 60 ± 10 % | |||||||
| Operating distance | [mm] | 0...48.6 | |||||||
| ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KD5018-02 — 13.04.2023 — | |||||||||
| KD5018 | |||||||||
| Capacitive sensor | |||||||||
| KDE3060-FPKG/NI | |||||||||
| Accuracy / deviations | |||||||||
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 | ||||||||
| Hysteresis | [% of Sr] | 1...15 | |||||||
| Switch point drift | [% of Sr] | -15...15 | |||||||
| Operating conditions | |||||||||
| Ambient temperature [°C] | -25...80 | ||||||||
| Protection IP 65 Increased immunity yes | |||||||||
| Tests / approvals | |||||||||
| EMC | EN 60947-5-2 | ||||||||
| MTTF | [years] | 537 | |||||||
| Mechanical data | |||||||||
| Weight [g] | 297.5 | ||||||||
| Housing | rectangular | ||||||||
| Mounting | non-flush mountable | ||||||||
| Dimensions [mm] | 105 x 80 x 40 | ||||||||
| Materials | PPE modified | ||||||||
| Displays / operating elements | |||||||||
| Display switching status 1 x LED, yellow | |||||||||
| Accessories | |||||||||
| Items supplied | spring washers: 4 | ||||||||
| cylinder screws: 4 | |||||||||
| Remarks | |||||||||
| Pack quantity | 1 pcs. | ||||||||
| Electrical connection | |||||||||
| terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5 | |||||||||
| Connection | |||||||||
