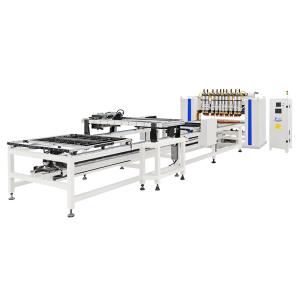

Electrical Control System Wire Mesh Welding Machine with Cooling
System and PLC Operation Control System
Refrigerator Wire Shelf Production Line Machine Steel Wire Mesh
Spot Welding Machine is H-type wire mesh multi-head automatic
welding machine. It adopts ten electrodes and equips with automatic
feeding system. The wire will be dropped to the fixture
automatically to achieve full automatic loading. After that it will
automatically execute the feeding and welding. Its one-way and
double-layer feeding device can move forward and back automatically
to finish the welding and the welding distance can be set at random
.It is suitable for the batch production of wire mesh with
multiple-points welding. The welding manner is one-way double-layer
automatic stepping feeding with 10 welding heads. The effective
welding width is 1200mm while the effective welding length is
1000mm. This machine is composed of main machine body, welding
transformer, pneumatic drive device, upper and lower electrodes,
automatic wire filling device, electrical control system, cooling
system, and PLC operation control system.
Functions Options
1. Power Supply:Type: Three-phase MF DC power supply system OR
two-phase AC power supply system Quantity: One set of power supply
system OR two sets of power supply system (double efficiency)
2. Feeder: Double-layer automatic feeder (cycle working, accurate
stepping position via servo motor) OR manual feeder
3. Unloading Device: Automatic unloading device OR manual unloading
device
4. Automatic Bending device 5. Automatic Straightening and Cutting
Machine
Detailed Description
- 1.This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more y wire and less x wire
- 2.The welding power source is three-phase. The welding manner is one-way double-layer automatic stepping feeding with 12 welding heads. (adjustable according to your product)
- 3.The effective welding width is 1200mm while the effective welding length is 3000mm. (adjustable according to your product)
Intelligent welding control system
Automatic welding by inputting coordinate data of welding position,
welding current and other data.
Welding Heads and Fixtures
Processing and design according to the drawings of each wire shelf
product. (customized)
Automatic Wire Filling System
You can put the precut straight wires into the hopper, then the
wire filling machine will do the wire filling into the fixture
automatically. It helps to increase the working efficiency and
reduce labor force.
Automatic Double-layer Feeder
When one fixture is under welding process, the wire filling system
will load the wires onto the other fixture at the same time. When
finish welding, the feeder will automatically exchange the fixture.
So the efficiency can be increased.
Production Line Machines
| Wire Flattening and Cutting Machine This machine is able to process the round wire into flat wire. It will automatically feed the round wire and cut it into required length. Normally you will need to prepare the 8mm wire coil, and make it into 12x3mm flat wire strip. | High Speed Wire Straightening and Cutting Machine This machine will help to make batch production of 2mm to 4mm wires. This machine speed is almost 5 times than the normal speed wire cutting machine. It helps to increase production rate and reduce labor cost. |
| Wire Frame Bending Machine This machine helps to bend the flat or round wires into square shape wire frame. It is able to bend multiple wires at the same time so as to increase production rate. | Wire Frame Butt Welding Machine The number of welding heads is depends on the welding width of the mesh. Different welding head can be set different welding programs and current respectively. |
| Wire Frame Double T-Butt Machine This machine is used to weld the cross bars of the wire shelf to the wire frame. The double head design helps to increase the production rate. Easy Operation. We can also design the automatic moving and welding application. | Wire Edge Trimming Machine After Welding, we need the trimming machine to cut off the edge of wire from the wire frame. To make the surface clean and smooth. |
| 2D Wire Handle Bending Machine This machine is used to bend the wire handle. It is suitable for 2-6mm wire bending. And you can bend any shape of the wire without changing mould. | 3D Wire Bending Machine This machine is used to bend the wire into 3D shape. It is suitable for 2-6mm or 3-8mm wire bending. And you can bend any 3D shape of the wire without changing mould. |
