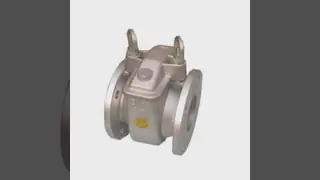

API Adaptor Coupler
Description
YJ series API adaptor coupler is the good design for API bottom adaptor to ensure the safety and quick loading and unloading.
It makes connection easier and mates with standard 4" API RP-1004 tank truck adaptors.
Characteristics
Aluminum alloy die-cast sturcture, anodized treatment
Cam locking operation, installed by pressing
22.5 angle downward reduce oil retention
The handle towards locking makes easier connection and more reliable sealing
Cam and free-floating eliminates friction and bending, easier to connect without grease
- Meets API 1004 and standard
Material
Body: Aluminum alloy
Pin: Stainless Steel
Seal: NBR
Handle: Copper
Technical Specification | ||
Model | YJ206N | YJ206T |
Size | 4” to 4”, 4” to 3” ,4” to 2.5” | |
Working pressure | 0.6 Mpa | |
Temperature range | -20~70℃ | |
Connection mode | Notch | NPT/BSPT |
Operating mode | Mechanical | Mechanical |
Medium | Diesel, Gasoline, Kersene | |
