Original LS-5560X-30C-EI Easy Configuration for Data Center MACsec Secure Encryption
Brand Name:HuaYutiancheng
Model Number:LS-5560X-30C-EI
Minimum Order Quantity:2 pieces
Private Mold:NO
Products Status:Stock
Ports:24
Contact Now
Add to Cart
Verified Supplier
Location:
Beijing Beijing China
Address:
12d2-8, Block B, 12th Floor, 28 A Information Road, Haidian Dist., Beijing, China
Supplier`s last login times:
within 31 hours
Product Details
Company Profile
Product Details
Product Description
H3C S5560X-EI series switch is a three-layer Gigabit Ethernet
switch product independently developed by H3C Technology Co., LTD.
(hereinafter referred to as H3C Company). It is an intelligent NMS switch designed for the network environment requiring high
performance, high-end port density and easy installation. Based on the industry's professional high-performance hardware
architecture and H3C's advanced Comware V7 software platform development, while based on a powerful unified exchange platform, to
achieve a seamless integration of wired and wireless. H3C S5560X-EI series switches can integrate wireless control functions to
achieve wireless/wired local forwarding at the access layer, eliminate wireless control bandwidth bottlenecks, expand wireless
deployment scale, and save user investment costs
(hereinafter referred to as H3C Company). It is an intelligent NMS switch designed for the network environment requiring high
performance, high-end port density and easy installation. Based on the industry's professional high-performance hardware
architecture and H3C's advanced Comware V7 software platform development, while based on a powerful unified exchange platform, to
achieve a seamless integration of wired and wireless. H3C S5560X-EI series switches can integrate wireless control functions to
achieve wireless/wired local forwarding at the access layer, eliminate wireless control bandwidth bottlenecks, expand wireless
deployment scale, and save user investment costs
Specification

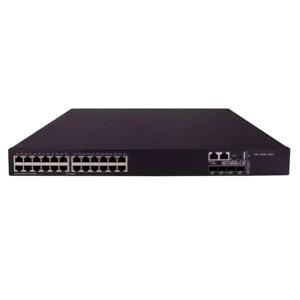

Product name | LS-5560X-30C-EI |
Port + Power supply | 24 10/100/1000Base-T adaptive Ethernet ports (8 of which are combo
ports) and 4 10-gigabit SFP+ ports |
Packet forwarding rate + switching capacity | 222Mpps/396Mpps+756Gbps/7.56Tbps |
Warranty | 1 year |
Size | 440×360 ×43.6（mm） |
Connect | Ethernet switch |
weight | ≤6.7kg |
USB mouth | 1 |
Management network port | 1 |
Management string mouth | 1 RJ-45 Console port, 1 Micro USB Console port (not simultaneous,
Micro USB preferred) |
Extended slot | 1 |
Expansion board | 4-port 10/100/1000BASE-T+ 6-port SFP interface board 2-port 40GE QSFP+ interface board 2-port 10-gigabit SFP+ interface board 2-port 10-gigabit electrical interface board 8-port 10-gigabit SFP+ interface board 12-port 10-gigabit SFP+ interface board * 2-port 25G SFP28 Ethernet optical interface module 8-port 1/2.5/5/10G BASE-T Ethernet electrical interface module 8-port 1/2.5/5G BASE-T Ethernet electrical interface module 4 Port 40G/100G interface board |
Power consumption (static) | Single AC:24W DC:24W Dual AC:29W DC:28W |
MAC address table | Static, dynamic, and black hole MAC addresses are supported Supports source MAC address filtering You can set the maximum number of learned MAC addresses for a port |
operating ambient temperature | -5℃～45℃ |
Working environment relative humidity (non-condensation) | 5%～95% |
