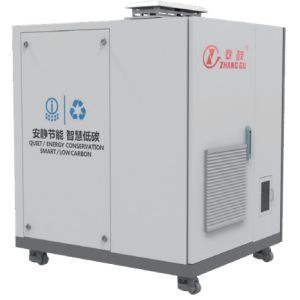

Superior Suspension Centrifugal Blower for High-Performance Airflow and Ventilation Systems

Product Description:

Foil Bearing High-speed Centrifugal Blowers is a high-efh.ciency,energy-saving,green and environmentally friendlyproduct, its mechanical structure is simple, the moving partsare few, the control robustness is good, and the maintenanceis convenient. It adopts automotive-grade oil-free andhigh-reliability dynamic pressure foil bearing, which has nofriction and small mechanical loss during operation. Usingadvanced permanent magnet synchronous motortechnology, the maximum speed can reach 95000rpm, and itonly takes 5s to run at full speed.The motor effciency is ashigh as 97%, which meets the two-stage energy effciencystandard.

The high-effciency ternary flow impeller used in the FoilBearing High-speed Centrifugal Blowers breaks through thekey technology of low specifc speed design and has higheffciency. The integrated special design of the main enginemakes the noise less than 75dB(A) and the vibration less than12um. It adopts stepless adjustment, and the blower can startand stop quickly, and the number of continuous starts andstops exceeds 200,000 times.

Foll Bearing Technology:

Foil bearing has physical contact between therotor and the bearing before starting, therelative movement of the rotor and the bearinggenerates air pressure when starting, when therotor rotates, the speed of the air around therotor can be converted into pressure energy, andthe air pressure makes the rotor float when therotor reaches a certain rotation speed and playsa lubricatingrole. Foil bearing technologyeffectively solves theproblems of lowefficiency, short life, and the need forregularmaintenance and lubrication of the traditiona!mechanical support transmission system.

TAir Suspension Bearing High Speed Centrifugal Blower Series Selection:

When the atmospheric conditions and medium are varied,the relative performance conversion calculation will be different,we can re-designed in accordance wth the requirement of users to adape to different working condition. There are two cooling methods for air suspension centrifugal blower: self-circulating water cooling and forced air cooling. If you have special requirements on the cooling mode, please tell us in advance.

Applications:

• Sewage treatment industry

Application scenarios: municipal sewage treatment plants, industrial wastewater treatment (chemical, printing and dyeing, papermaking, etc.).

Advantages:

Energy saving of 30% -50%: Compared to traditional Roots blowers, air suspension technology has no mechanical friction and higher efficiency.

Precise aeration control: By adjusting the air volume through frequency conversion, matching the oxygen demand of the biochemical tank, and reducing energy consumption.

Maintenance free: No gears, no lubricating oil, reducing downtime maintenance costs.

• Chemical and petrochemical industry

Application scenarios: gas transportation (such as chlorine gas, sulfur dioxide), reactor aeration, exhaust gas treatment.

Advantages:

Explosion proof design: Customizable explosion-proof models (Ex certified), suitable for flammable and explosive environments.

Corrosion resistant material: The impeller and shell can be made of stainless steel or special coatings to cope with corrosive gases.

• Electric power and metallurgical industry

Application scenarios: desulfurization and denitrification (FGD) in coal-fired power plants, blast furnace blowing, and flue gas circulation.

Advantages:

High pressure ratio operation: Single stage compression can achieve higher pressures (usually 0.3-1.0 bar), simplifying the system structure.

High temperature adaptability: Some models can handle high temperature gases below 150 ℃.

• Food and pharmaceutical industry

Application scenarios: Fermentation aeration (such as antibiotic production), pneumatic conveying.

Advantages:

Oil free pollution: Air bearing technology ensures the purity of the transported gas and complies with GMP standards.

Low noise: Operating noise ≤ 80dB, suitable for factory areas with strict environmental requirements.

Customization:

Brand Name: Aipu

Place of Origin: China

Certification: CE,CCC,SABS,TUV,RoHS

Packaging Details: Standard Export Package

Delivery Time: 6-8 workdays

Support and Services:

Our team of highly qualified technicians provides 24/7 technical support and services to ensure that our customers receive the best possible experience with our product.

Our technicians are trained to diagnose and troubleshoot any issues that may arise with the system. We also provide training to our customers on how to operate and maintain the system to ensure optimal performance.

Packing and Shipping:

Product Packaging:

The Suspension Centrifugal Blowercomes in a sturdy wooden crate for maximum protection during transport. The system components are securely packed with foam and bubble wrap to prevent any damage during shipment.

Shipping:

Shipping time may vary depending on your location. Once your order is processed, you will receive a tracking number to monitor your shipment's progress. Please note that any customs fees or taxes associated with international shipping are the responsibility of the customer.

FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Aipu.

Q2: Where is this product manufactured?

A2: This product is manufactured in China.

Q3: What certifications does this product have?

A3: This product has CE, CCC, SABS, TUV, and RoHS certifications.

Q4: How much does this product cost?

A4: The price of this product is negotiable.

Q5: What are the packaging details and delivery time for this product?

A5: The packaging details for this product are standard export package. The delivery time is 6-8 workdays.
