RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M

Brand Name:LDSK
Minimum Order Quantity:1 piece
Delivery Time:1-3 workdays
Payment Terms:D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Place of Origin:Guangdong, China
Supply Ability:50000pcs per month
Contact Now

Add to Cart

Verified Supplier
Location: Shenzhen China
Address: No.11, Plant Road, Tongle Community, Baolong Street, Longgang District, Shenzhen
Supplier`s last login times: within 45 hours
Product Details Company Profile
Product Details

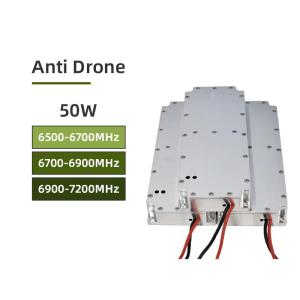

6500-6700mhz/6700-6900mhz/6900-7200mhz 50W anti drone module/PA module


Power and Frequnecy support Customzation form 10-7500mhz, 10W,20W,30W, 40W, 50W,100W,150W,200W

The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M 6500-6700 6700-6900 6900-7200 6-7.5G rf amplifiers cb radio wideband rf power amplifier rf amplifiers 100w 220 mhz rf power amplifier 150w rf amplifier 1000w vhf 100-7500mhz factory


Performance Parameters

ParameterMin.Typ.Max.UnitSymbol
Operating Frequency6500–6700, 6700–6900, 6900–7200MHz
Bandwidth-200-MHzBW
Peak Output Power (CW signal)-50-WPSAT
Efficiency-28-%EFF
Harmonics (1st–Nth, @70W)10--dBcHN
Spurious Emission60--dBcSpur
Input VSWR--2:1-VSWR
Output VSWR--2:1-VSWR
Operating Voltage28--VVDC
Current Consumption5.5--IDC

Mechanical Parameters

ParameterTyp.Unit
Weight0.4kg
Dimensions132 × 53 × 17mm
RF ConnectorRF output: SMA female-
DC ConnectorPower supply: Feedthrough capacitor male-
Cooling MethodExternal heat sink required-

Product Description



China RF Power Amplifier Rf Amplifier Board  Rf Amplifier Module Anti-FPV  Drone Security System Rf Power Amplifier Module 6500-7200M supplier

RF Power Amplifier Rf Amplifier Board Rf Amplifier Module Anti-FPV Drone Security System Rf Power Amplifier Module 6500-7200M
