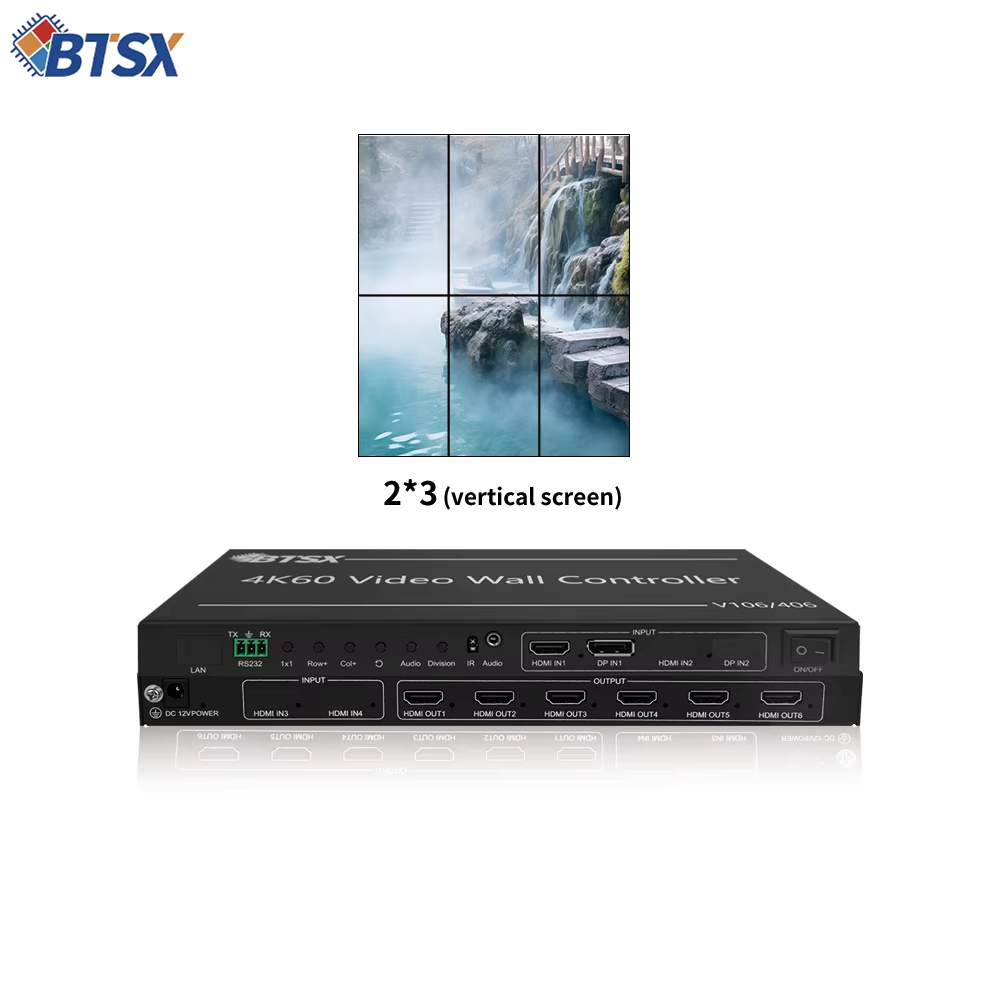

4K60 Video Wall Controller with HDMI2.0/DP1.2 Input and 6 HDMI Outputs Powered by 40nm FPGA Chip
Brand Name:Bitvisus
Certification:CE、FCC、GB
Model Number:BIT-VWC-106
Minimum Order Quantity:1
Delivery Time:5-8 work days
Payment Terms:T/T
Contact Now
Add to Cart
Verified Supplier
Location:
Shenzhen Guangdong China
Address:
Nanshan Zhigu Industrial Park 303, Building F Shenzhen, Guangdong, China
Supplier`s last login times:
within 24 hours
Product Details
Company Profile
Product Details
4K60 UHD Zero-Latency Video Processor 1 in 6 Out
Video Wall Controller for Exhibition Display
Product Overview
The VWC-106 is an Ultra HD splicer featuring:
- 1 HDMI/DP input interface with 6 HDMI output interfaces
- Flexible display configurations: horizontal/vertical/field shape combinations across 6 screens
- Input supports 3840x2400@60Hz, output supports 1920x1200@60Hz (custom resolutions available)
- Output supports 180° rotation capability
- Zero distortion processing with no compression of input source
- Multiple control options: key control, infrared remote, RS232 serial port
- Compatible with computers, Android boxes, game consoles and other devices
- Powered by 40nm process FPGA chip for real-time, delay-free processing
Application Scenarios
Ideal for ultra-high-definition video surveillance, large screen walls, retail advertising displays, exhibition halls, and other professional applications.
Contact us for project-specific product consultations!
Product Specifications
| Model | VWC-106 |
|---|---|
| Input Interface | HDMI 2.0/DP 1.2, HDCP2.2 |
| Input Video Pixel Frequency | 600MHz |
| Input Resolution | 2x3: 5760x2160@30Hz 3x2: 3840x3240@30Hz 5x1: 1920x5400@30Hz 6x1: 1920x6480@30Hz |
| Output Interface | HDMI 1.3x6 (≤15m) |
| Output Resolution | 1920x1080@60Hz / 1920x1200@60Hz |
| Audio | HDMI follow out, 3.5mm audio splitter connector |
| Control Methods | Pushbutton, infrared remote control, serial port RS232 |
| Power Supply | DC 12V 2A |
| Power Consumption | 12W |
| Operating Temperature | 0～50ºC |
| Product Dimensions | 270x128x35mm |
| Package Weight | 1.6KG |
| Included Accessories | 12V power supply x1 Remote control x1 IR receiver head x1 HDMI or DP cable x1 USB to RS232 serial cable x1 (optional) |
| Warranty | 3 years |
