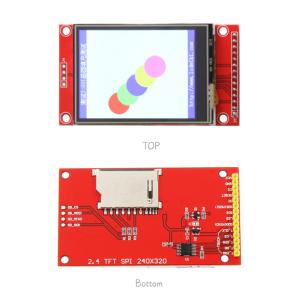

2.4 Inch ILI9341 SPI 320*240 TFT LCD Screen Module LCD Display With PCB Board
Brand Name:AISON
Certification:ISO9001 / ISO14000/ROHS
Model Number:MSP2401/MSP2402
Minimum Order Quantity:1
Delivery Time:7 working days
Payment Terms:T/T, Western Union, MoneyGram,Paypal
Contact Now
Add to Cart
Verified Supplier
Location:
Shenzhen China
Address:
305, Building A1, Third Industrial Zone, Huaide Community, Fuyong Street, Bao 'an District, Shenzhen, China
Supplier`s last login times:
within 47 hours
Product Details
Company Profile
Product Details
2.2 inch /2.4 inch /2.8 inch /3.2 inch /3.5 inch /4.0 inch SPI TFT LCD Module with PCB Board
Options:
2.2 inch SPI LCD Module without touch;2.2 inch SPI Module display with RTP
2.4 inch SPI LCD Module without touch;2.4 inch SPI Module display with RTP
2.8 inch SPI LCD Module without touch;2.8 inch SPI Module display with RTP
3.2 inch SPI LCD Module without touch;3.2 inch SPI Module display with RTP
3.5 inch SPI LCD Module without touch;3.5 inch SPI Module display with RTP
4.0 inch SPI LCD Module without touch;4.0 inch SPI Module display with RTP
General Description
MSP2401/MSP2402 is a transmissive type a-Si TFT-LCD (amorphous silicon thin film transistorliquid crystal display) module, which is composed of a TFT-LCD panel, a driver circuit abacklight unit, The panel size is 2.4 inch and thresolution is 240x320. High image quality a-Si TFT LCD module. Partial-screen display function is available. Sleep and Stand-by modes are available for power saving.
Product Description
* 2.4-inch color screen,support 65K color display,display rich colors
* 320X240 resolution, optional touch function
* Using the SPI serial bus, it only takes a few IOs to illuminate the display
* Easy to expand the experiment with SD card slot
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
Product Parameters
| Name | Parameter |
| Display Color | RGB 65K color |
| SKU | MSP2401/MSP2402 |
| Screen Size | 2.4(inch) |
| Type | TFT |
| Driver IC | ILI9341 |
| Resolution | 320*240 (Pixel) |
| Module Interface | 4-wire SPI interface |
| Active Area (AA area) | 36.72x48.96(mm) |
| Module PCB Size | 77.18x42.72(mm) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| VCC power voltage | 3.3V~5V |
| Logic IO port voltage | 3.3V(TTL) |
| Power Consumption | TBD |
| Rough Weight(Package containing) | 22(g) |
Interface Definition
| Number | Pin Label | Description |
| 1 | VCC | 5V/3.3V power input |
| 2 | GND | Ground |
| 3 | CS | LCD chip select signal, low level enable |
| 4 | RESET | LCD reset signal, low level reset |
| 5 | DC/RS | high level: register, low level: data |
| 6 | SDI/MOSI | SPI bus write data signal |
| 7 | SCK | SPI bus clock signal |
| 8 | LED | if not controlled, connect 3.3V always bright |
| 9 | SDO/MISO | SPI bus read data signal, if you do not need to the read function, you can not connect it |
