Product Details

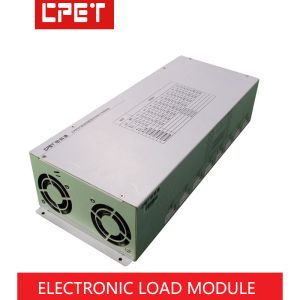

Programmable DC Energy Saving And Environmental Protection Electronic Load


Scope of application


Apply to the burn-in testing of Adapter, Industrial power supply, Switching power supply,LED driver and other kind of power supply
Apply to aging vehicles ,burn-in cabinet,burn-in room,automatic burn-in testing system
Battery discharge burn-in testing

Outstanding functions


1. Channel take independent control
2. Efficiency is more than 85%
3. Support Von setting
4. CC/CV/CR/CP load mode
5. Output take EMC progress
6. Harmonic correction of power harmonic
7. Support parallel connection of channel under CC load mode
8. RS485 Communication Structure is industrial grade

Performance parameters


ModelCP8508CP8509CP8512CP8513
Input voltage range3~60Vdc10~100Vdc3~60Vdc3~60Vdc
Input current range0.5~20Adc0.5~10Adc0.5~40Adc0.5~60Adc
Channel number8CH8CH4CH6CH
Single channel power250W250W550W1100W
Pull modeCC/CV/CR/CPCC/CV/CR/CPCC,CV,LED,CR,CPCC,CV,LED,CR,CP
Votage comtrol precision±2%+0.5%FS±1%+0.2%FS±2%+0.5%FS±2%+0.5%FS
Voltage accuoacy±1%+0.5%FS±1%+0.2%FS±1%+0.5%FS±1%+0.5%FS
Current control
accuracy
±2%+0.5%FS±1%+0.2%FS±5%+0.5%FS±3%+0.5%FS
urrent readback
accuracy
±1%+0.5%FS±1%+0.2%FS±1%+0.5%FS±1%+0.5%FS
Output voltage/
current
72V/28A120V/17A56V/57ARS-485
Communication modeRS-485RS-485RS-485RS-485
Paired inverterCP5309CP5310CP5309CP5309
