Quectel 2G Module M26 Ultra-small Quad-band LCC Encapsulated GSM/GPRS Modules M26 MC60 M95 M10 M35 M20

Quad-band 850/ 900/ 1800/ 1900 MHz Operation Temperature -40 °C to +85 °C Dimensions 29.0 x 29.0 x 3.6mm Weight Approx. 6.0g

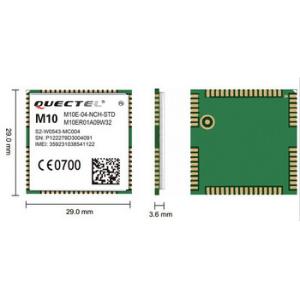

Quectel M10 GSM/GPRS module

The M10 is a complete Quad-band GSM/GPRS solution in an LCC type which can be embedded in customer applications, offering the highest reliability and robustness.

Featuring an industry-standard interface and extremely low power consumption, the M10 delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor. The M10 can fit into almost all the M2M applications, including VTS, Smart Metering, Wireless POS, Security, etc.

M10 supports an important remote upgrade technology which named QuecFOTA. With the unique Quectel protocol, the new firmware of M10 will be perfectly updated by MCU via UART, and this can greatly solve the worries for M2M applications.

As a part of Quectel’s corporate policy of environmental protection, all products comply to the RoHS (Restriction of Hazardous Substances) directive of the European Union (EU Directive 2002/95/EG).

Key benefits

Quad-band GSM/GPRS module with a size of 29.0 x 29.0 x 3.6mm

LCC type suits for customer application

Embedded powerful internet service protocols, multiple Sockets & IP addresses

Based on mature and field-proven platform, backed up by our support service, from definition to design and production

Certificates: CE/ GCF/ FCC/ PTCRB/ IC/ ANATEL/ UCRF/ Rogers/ NAL/ ICASA/ NCC/ China TA
