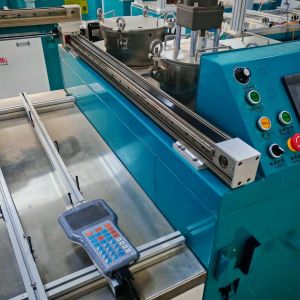

Glue Potting Machine designed to automate AB glue mixing and dispensing for precise and potting of lithium battery modules
Brand Name:GDS
Certification:CE
Model Number:MG-1280
Minimum Order Quantity:1 PIECE
Delivery Time:10 working days
Payment Terms:T/T
Contact Now
Add to Cart
Verified Supplier
Location:
Zhongshan Guangdong China
Address:
No. 8 Zhicheng Rd, Baofeng, Xiaolan,Zhongshan,Guangdong
Supplier`s last login times:
within 1 hours
Product Details
Company Profile
Product Details
Glue Potting Machine designed to automate AB glue mixing and dispensing for precise and potting of lithium battery modules
Machine description
This advanced Glue Potting Machine is engineered to automate the precise mixing and dispensing of AB glue for lithium battery module potting, ensuring superior encapsulation and protection. By integrating high-precision dosing systems and intelligent control algorithms, it achieves uniform glue application, eliminating material waste and enhancing bonding strength. The automated process guarantees consistent coverage, safeguarding battery cells against moisture, dust, and vibration while improving thermal management and mechanical stability.
Designed for efficiency, the machine features PLC control and touchscreen interfaces, allowing seamless parameter adjustments and real-time monitoring. Its adaptability to various battery sizes and shapes makes it ideal for diverse applications, from consumer electronics to industrial energy storage. By minimizing manual intervention, it boosts production speed and reduces operational costs.
The AB glue potting process mitigates risks of leakage and thermal runaway, ensuring safer battery performance in demanding environments. As a key solution for modern lithium battery manufacturing, this machine drives innovation in renewable energy and electric vehicle sectors, delivering improved product quality, enhanced reliability, and faster time-to-market.
Machine Feature
- Metering, proportion, mixing, Dispensing are realized via automatic operation;
- Two 304 stainless steel container to store A glue and B glue separately to make sure glue will not solidify in long term reservation;
3 axis mechanical hands employ high precision linear movement module to ensure accurate movement and high repeat accuracy;
Touch screen operation plus handhold teaching programming case, easy to learn and operate;
According to the feature of products and production capacity requirement, fixture and glue delivery head can be customized.
Technical Parameters
Model | MG-1280 |
Working Range | 1200*800*100mm(X*Y*Z) |
Moving Speed | 0~500mm/sec |
Repeat Accuracy | ±0.02mm |
Mixing Proportion | 100:100~100:10(1:1~10:1) |
Metering Method | Precise Gear Pump or Rotary Plunger Pump |
Mixing Method | Static Mixing or Dynamic Mixing(based on glue nature) |
Mixing Accuracy | ±1% |
Glue Extrusion Accuracy | ±1% |
Glue Container Capacity | 30L 304 Stainless Barrel |
Glue Viscosity | Max≤20000CPS |
Glue Additive Proportion | MAX≤100(Glue):100(Additive)(1:1) |
Glue Additive Size | Max≤400tsp |
Control Mode | PLC+Handhold Teaching Programming Case+Touch Screen |
Programming | Teaching Programming |
Program Capacity | At least 100 unit, 4000 points/unit |
Transmission Method | Steeping Motor+Synchronous Belt+Linear Guide-way |
Working Pressure | 0.5-0.8Mpa |
Working Power | AC220V 50HZ/2000W(stirring,vacuuming, heating not included) |
Working Temperature | 0-40℃ |
Working Humidity | 20-90% no condensation |
Dimension | 1680x1200x1600 mm(WxDxH) |
Weight | About 350KG |
Optional Functions | Glue container stirring, pre-heating, vacuum de-foaming, automatic cleaning |
Suitable Glue: two component glue, such as organic silicone, epoxy, PU, acrylate etc.
Applications:Small size products with small volume of glue, such as LED display, wall washer light, line light, Ads module, nixie tube, mutual inductor, transformer, power module, photo-voltaic module, automobile head light, daytime running light, negative-ion generator, crystal photo frame etc.
