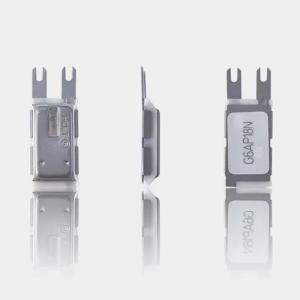

HC01/6AP Bimetal Motor Overload Protector 1-45A Thermal Cutoff Switch Replace KLIXON 3MP Series for Automotive Sliding Door Motor
The HCET HC01/6AP is a high-performance bimetal motor thermal
protector designed to replace Sensata KLIXON 3MP series devices.
Combining precise temperature sensitivity (30℃-180℃ adjustable) and
current-triggered protection (1-45A range), this compact circuit
breaker ensures reliable overload protection for motors in
automotive, industrial, and household applications. With ±5℃
tolerance and 4-10s trip time, it effectively prevents motor
burnout in wiper systems, HVAC equipment, power tools, and white
goods while meeting strict RoHS compliance.
Product feature:
- Dual-Sensing Protection
Precisely triggers on both ambient temperature (30-180℃ customizable) and current overload (1-45A range) for comprehensive motor protection. - Automotive-Grade Reliability
Ideal for windshield wiper motors, sunroof actuators, and door lock systems with vibration-resistant construction. - Multi-Industry Application
Certified for HVAC compressors, industrial pumps, power tools (15A/30V DC), and home appliances like washing machines. - Custom Configuration Options
Choose from 8 terminal types (A-H) and wire specifications to match OEM requirements. - Enhanced Safety Compliance
Meets EU RoHS standards with snap-action bimetal mechanism for fail-safe circuit interruption.
Electrical Characteristics:
30℃~180℃ | 4S~10S Special action time can be customized |
| ±5°C, ±8℃ Temperature Tolerance | 1A~45A The overload current tripping range can be customized according to customer's requirements. |
45amps/15 volts DC 15amps/30 volts DC 25amps/250 volts AC 30amps/125 volts AC |
Dimension size
Product detail
Application
