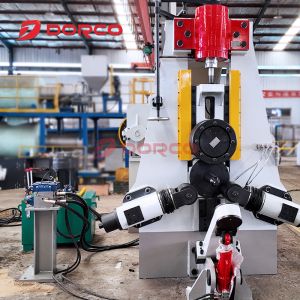

Efficient Automation Vertical Ring Rolling Machine Reliable with Strong Rigidity for High Precision Ring Components
Brand Name:Duolek
Model Number:D51K
Minimum Order Quantity:1 Set
Delivery Time:45-75 Working Days
Payment Terms:L/C,T/T
Place Of Origin:China
Contact Now
Add to Cart
Verified Supplier
Location:
Qingdao China
Address:
North of Zhuzhu Road, Puji Town, Jiaozhou City, Qingdao, China
Supplier`s last login times:
within 13 hours
Product Details
Company Profile
Product Details
Efficient Automation Vertical Ring Rolling Machine Reliable And
Energy - saving
Product Attributes
| Attribute | Value |
|---|---|
| Sensitive operation | Operators Can Quickly Adjust According To Needs |
| Control System | CNC Hydraulic, CNC Servo PLC |
| Safety features | emergency stop button, overload protection, etc |
| Equipment advantages | Small Size, Strong Rigidity, Material And Energy Saving |
| Ring components | Higher Precision, Strength, And Hardness Of The Ring Components |
| Power source | Electricity |
Product Description
The D51K series CNC vertical ring rolling machine can achieve automation of the ring rolling process, which does not require manual operation, saves time and effort, and has high production efficiency.
Features
- Unmanned operation: flexible configuration of loading and unloading robotic arms and robots to achieve automated operation;
- Control system: CNC hydraulic or servo PLC control system, flexible and optional;
- Structural optimization: D51K fully automatic CNC ring rolling machine, with a long slide rail surface, rectangular cross-section, high rail accuracy, and long service life.
- Easy installation: D51K CNC ring rolling machine, standard reducer and Y-shaped motor are placed on the same base for easy installation. The muffler releases compressed air to eliminate noise pollution.
- Rolling process: a rolling process that can achieve a larger rolling ratio and roll more complex shaped products;
- Efficient production capacity improvement: Each link is closely connected to reduce waiting time and idle travel during the processing, achieving continuous and efficient operations;
- Support customization: Provide personalized customization services based on the actual needs of customers, and optimize and adjust the device's functions and configurations accordingly.
Technical Parameters
| DRC-D51K(H) | 160 | 250 | 350 | 450 | 550 | 800 | 1000 | 1200 | 1300 |
|---|---|---|---|---|---|---|---|---|---|
| DRC-D51K(P) | 160 | 250 | 350 | / | / | / | / | / | / |
| Nominal outer diameter of grinding ring(mm) | 160 | 250 | 350 | 450 | 550 | 800 | 1000 | 1200 | 1300 |
| Range of outer diameter of rolling ring(mm) | 55-160 | 80-250 | 180-350 | 250-500 | 350-600 | 400-800 | 500-1000 | 600-1200 | 600-1300 |
| Ring rolling height(mm) | 40 | 130 | 160 | 230 | 230 | 260 | 260 | 260 | 260 |
| Radial rolling force(KN) | 50 | 150 | 300 | 500 | 550 | 800 | 800 | 800 | 800 |
| Linear rolling speed(m/s) | 2.5 | 1.8 | 1.5 | 1.5 | 1.3 | 1.37 | 1.3 | 1.3 | 1.3 |
| Cylinder stroke(mm) | 50 | 100 | 110 | 130 | 150 | 200 | 250 | 250 | 350 |
Applications
Excellent performance in common ring processing, such as bearing
rings, gear rings, flanges, etc. can be completed with high
quality. In fields such as aerospace and automotive manufacturing
that require extremely high precision and complexity of
environmental components, we are also capable of performing tasks
efficiently, whether it is mass production of conventional sizes or
customized processing of special specifications.
Our company strictly controls every aspect of equipment development
and production, and is equipped with comprehensive pre-sales, in
sales, and after-sales services to ensure that users have no
worries during the use of the equipment.
