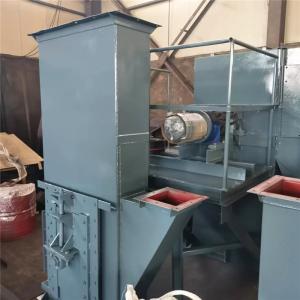

Carbon Steel Vertical Bucket Elevator High Efficiency Material Handling Solution
Brand Name:XINGHE YONGCHEN
Certification:ISO9001
Model Number:TD
Minimum Order Quantity:1 SET
Delivery Time:45-65D
Payment Terms:L/C,T/T,Western Union,MoneyGram
Contact Now
Add to Cart
Verified Supplier
Location:
Zigong Guizhou China
Address:
Guizhouqiao Road, Qingyang Street, Rong County, Zigong City, Sichuan Province
Supplier`s last login times:
within 29 hours
Product Details
Company Profile
Product Details
TD Series Bucket Elevator
High-Efficiency Vertical Material Handling Solution for Diverse
Industries
Product Overview
The TD Series Bucket Elevator is engineered for vertical transportation of powdered, granular, and small-block materials with low to moderate abrasiveness, including grains, coal, cement, crushed ores, and quartz sand. Compliant with the JB3926-1999 industrial standard, it achieves a maximum lifting height of 40 meters and outperforms traditional D-Series elevators in efficiency, versatility, and reliability.
Key Features
Superior Efficiency & Low Energy Consumption
Utilizes high-capacity, densely arranged buckets to minimize material spillage and power waste.
Reduces "empty-load" operation with optimized bucket design, lowering operational costs.
Wide Material Compatibility
Handles non-abrasive to semi-abrasive materials (e.g., coal, cement, sand) while maintaining excellent sealing to reduce environmental pollution.
Supports bulk density <1.5 t/m³.
Unmatched Reliability
Advanced engineering ensures 20,000+ hours of trouble-free operation.
Smooth operation enables higher lifting heights without vibration or instability.
Extended Service Life
Inflow feeding system reduces material collisions and mechanical wear.
Reinforced rubber belt and abrasion-resistant buckets minimize maintenance needs.
Structural Design
Traction System: Combines durable rubber belts with four specialized bucket types:
Q-Type (Shallow Bucket): Ideal for lightweight powders.
H-Type (Arc-Bottom Bucket): Optimized for cohesive or sticky materials.
ZD-Type (Medium-Deep Bucket): Balances capacity and flow control.
SD-Type (Deep Bucket): Designed for high-volume granular materials.
Drive Options:
YZ-Type Reducer: Directly mounted on the main shaft for compactness, featuring built-in anti-reverse rollers for fail-safe braking.
ZQ/YY-Type Reducer: Low-noise design with floating主轴 to eliminate installation stress.
Modular Components: Includes upper/lower sections with drive/tension rollers, intermediate casing, and anti-reverse brake device for safety.
Technical Specifications
Max Lifting Height: 40 meters
Material Temperature: Standard industrial range
Industries Served: Grain processing, coal mining, cement production, chemical, metallurgy, and mineral processing.
Bucket Elevator Specifications
| Model | TD160 | TD250 | TD315 | TD400 | TD500 | TD630 | D160 | D250 | D350 | D450 |
|---|---|---|---|---|---|---|---|---|---|---|
| Bucket Type | Q, H, Zd, Sd | Q, H, Zd, Sd | Q, H, Zd, Sd | Q, H, Zd, Sd | Q, H, Zd, Sd | H, Zd, Sd | Q, S | Q, S | Q, S | Q, S |
| Capacity (m³/h) | 9.0–27 | 20–59 | 28–67 | 40–110 | 63–154 | 142–238 | 4.7–8 | 18–22 | 25–42 | 50–72 |
| Bucket Volume (L) | 0.5–1.9 | 1.12–4.6 | 1.95–5.8 | 3.1–9.4 | 4.8–15 | 14–23.5 | 0.65–1.1 | 2.6–3.2 | 7–7.8 | 14.5–15 |
| Belt Width (mm) | 200 | 200 | 200 | 200 | 600 | 600 | – | – | – | – |
| Bucket Speed (m/s) | 1.4 | 1.4 | 1.4 | 1.4 | 1.8 | 1.8 | – | – | – | – |
| Drum Speed (rpm) | 67 | 67 | 67 | 67 | 600 | 600 | – | – | – | – |
| Max Material Size (mm) | 25 | 25 | 25 | 25 | 1.8 | 1.8 | – | – | – | – |
Notes:
Bucket Types:
Q: Light-duty, H: Heavy-duty, Zd: Deep-type, Sd: Super-deep.
D-Series uses simpler bucket types (Q and S).
Capacity and Bucket Volume vary by bucket type (see ranges).
D-Series models lack detailed specs for belt width, speed, and drum speed.
Why Choose TD Series?
As a modern upgrade to legacy D-Series models, the TD Bucket Elevator delivers higher throughput, lower maintenance, and adaptability to harsh environments. Its belt-driven design ensures quiet, vibration-free operation, while modular components simplify customization and repairs.
Elevate your productivity with TD Series – where innovation meets durability.
