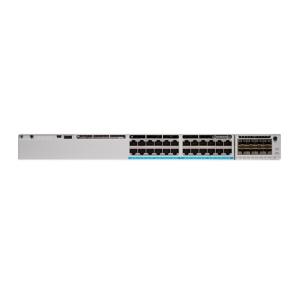

Cisco 9300 24 Port Switch UPOE Layer 3 Managed Switch With Network Essentials C9300-24U-E
Brand Name:Cisco 9300 series switch
Model Number:C9300-24U-E
Minimum Order Quantity:2 pieces
Delivery Time:2-5 work days
Payment Terms:T/T, Western Union
Place of Origin:Beijing
Contact Now
Add to Cart
Verified Supplier
Location:
Beijing Beijing China
Address:
Room 606, Block B, West Songlanbao Village, Shahe Town, Changping District, Beijing
Supplier`s last login times:
within 39 hours
Product Details
Company Profile
Product Details
Product Description
Cisco 9300 Series Industrial 24 Ports UPOE Layer 3 Managed Switch with Network Essentials C9300-24U-E
Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part
of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere,
endpoints could be anything, and applications are hosted all over the place.
The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation
that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.
C9300-24U-E Specification | |
| Part Number | C9300-24U-E |
| Product Description | 9300 24-Port UPOE, Network Essentials |
| Total 10/100/1000 or Multigigabit copper ports | 24 UPOE |
| Default AC power supply | 1100W AC |
| Available PoE power | 830W |
| StackWise-480 | Yes |
| StackPower | Yes |
| Default power supply | PWR-C1-1100WAC-P/2 |
| Switching capacity | 208 Gbps on 24-port Gigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 2000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per 9300 Series stack | 208 |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port Gigabit Ethernet model |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
| Mean time between failures (hours) | 299,000 |
| Safety certifications | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic emissions certifications | 47 CFR Part 15 CISPR22 Class A EN 300 386 V1.6.1 EN 55022 Class A EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR24 EN 300 386 EN55024 TCVN 7317 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Network Modules
Cisco Catalyst 9300 Series switches (C9300X and C9300 SKUs) support optional network modules for uplink ports (Figure 1). These field-replaceable network modules with 25G and 40G speeds in the Cisco Catalyst 9300 Series enable greater architectural flexibility and infrastructure investment protection by allowing a nondisruptive migration from 10G to 25G and beyond. The default switch configuration does not include the network module.
Figure 1.
Cisco Catalyst 9300X Network Modules
Figure 2.
Cisco Catalyst 9300 Series Network Modules
Our Services
| *Packing Details 1. All items are sealed in original box 2. We will also pack them with another carton box before shipping 3. Professional packing will make sure the goods arriving safely |
| *FAQ Q: Is the product brand new? A: All our products are new original. Q: When can I get my purchase? A: We work with DHL, UPS,Fedex, Middle East Express and many others delivery companies. The goods usually arrive at the designated address within 3-5 days. Q: How long is the lead time? A: We will deliver the goods within 1-2 days after receiving the payment. If it is in stock, we will arrange it immediately. Q: How long is the warranty? A: One year. |
