Spandex Elasticity Meter Spandex Filament Elasticity Tester Spandex Equipment

1.Product Introduction

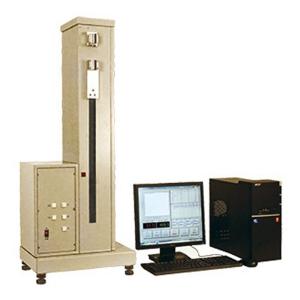

The GA-7X type spandex elasticity tester is a testing instrument used to measure the tensile strength and elastic recovery properties of spandex yarns and other elastic fibers. It can conduct a single stretching test on the sample to determine its strength, elongation rate, and load at a fixed elongation, and can also perform a fixed elongation elasticity test and relaxation test on the sample to measure its elastic recovery rate, permanent deformation rate, and stress attenuation rate, etc.
This instrument complies with industry standards FZ/T 50006, FZ/T 50007, and the International Chemical Fiber Standardization Bureau (BISFA) viscoelasticity test method standard. It can be widely used in the performance testing of spandex yarns in chemical fiber, textile enterprises, inspection institutions, and research units.

2.Product Paramter

Load measurement range0~200cN or 0~500cN
Load measurement error≤±1 %
Load measurement resolution0.01cN
Extension measurement range0~ 500 mm(the clamping distance is 50 mm)
Extension measurement error≤±0.5 mm
Extension measurement resolution0.1%
Lower clamping device lifting speed50~1000 mm/min
Power supply and power consumption Dimensions of the shape220V~±10%,50±1 Hz,≤ 100 VA
Load measurement range300×450×1170(L×W×H)mm
