0.71-Inch TFT Circular IPS LCD Screen | 12PIN Soldered Connection, 360° HD Full-View, Vivid Color Display for Smart Wearables & Mini Instruments
Brand Name:HuaXin
Certification:ISO14001/ ISO9001/IATF16949
Model Number:HX150ROU010
Minimum Order Quantity:1000
Delivery Time:4~6weeks
Payment Terms:T/T
Contact Now
Add to Cart
Verified Supplier
Address:
WORKSHOP 60,3/F,BLK A, EAST SUN IND CTR NO. 16SHING YIP ST KWUN TONG, HK
Supplier`s last login times:
within 22 hours
Product Details
Company Profile
Product Details
0.71" TFT Round IPS LCD Module | 12PIN , HD Full-View with 360° Visibility, Low Power & Easy Integration for Portable Mini Devices
Technical Specifications
| Display Technology | TFT module |
| Display Size | 0.71 inch |
| Resolution | 160×160 |
| Interface | SPI |
| Driving IC | GC9D01 |
| Brightness | 350C/D |
| View Angle | All |
| Part No. | HX1071ROU010 |
| Outline Size (mm) | 20.12(H)*22.3(V)*1.81(D) mm |
| AA Size (mm) | 18×18mm |
| Working Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |

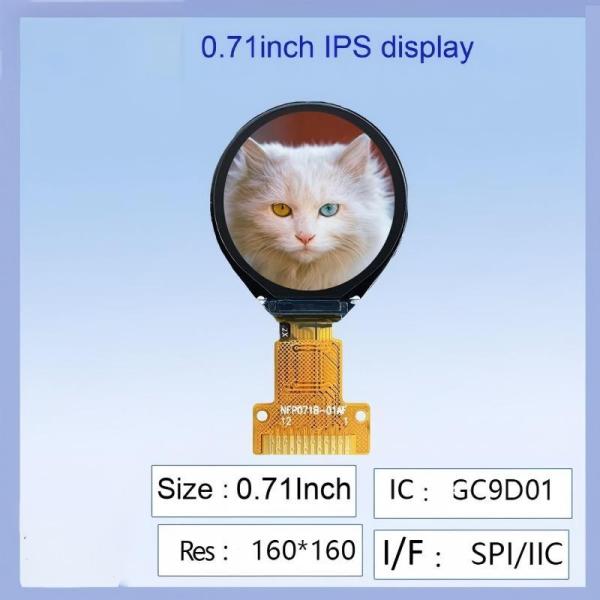

Product Images
Manufacturer Advantages
- Cost-effective production facility in inland China
- Advanced equipment ensuring stable product quality
- Automated manufacturing processes for efficiency and consistency
- Experienced engineering team with 20+ years in LCD technology
- Custom design capabilities for specialized requirements
About Huaxin Technology (Enshi) Co., LTD
Established in 2009 and located in Hubei Enshi, Huaxin Technology is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.
Product Range
- VA, TN, HTN, STN, FSTN, CSTN LCD series
- COB, TBA, COG, TP, LED backlight LCM series
Company Details
| Registered capital | 20 million |
| Staff | 500+ (10% R&D, 15% QC) |
| Certifications | ISO14001, ISO9001/IATF16949, SGS |
Production Capacity (k/Day)
| Product | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|
| LCD | 4.5 | 9 | 9 | 9 | 9 |
| LCM | 70 | 150 | 300 | 450 | 450 |
| Backlight | 100 | 200 | 300 | 500 | 500 |
| OLED | 10 | 20 | 30 | 40 | 50 |
Applications
- Car navigation systems & printers
- Video communication & advertising displays
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
TFT Display Characteristics
- Excellent image quality with high resolution and color accuracy
- Fast response times for smooth transitions
- Wide viewing angles with minimal color shift
- Energy efficient operation
- Available in various sizes for different applications
- LED backlighting for consistent illumination
TFT Display Limitations
- Viewing angles may be limited compared to other technologies
- Moderate contrast ratios
- Backlighting increases power consumption
- Potential motion blur in fast-moving content
- Limited flexibility in physical form
- Color gamut may be narrower than some alternatives
