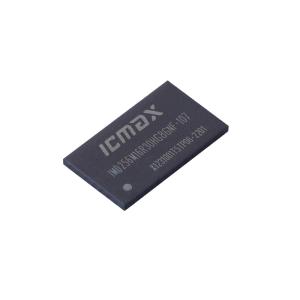

DDR3 4Gb SDRAM Memory Chip FBGA-96 8K Refresh IMD256M16R30HG8GNF-107
Brand Name:ICMAX
Certification:RoHS
Model Number:IMD256M16R30HG8GNF-107
Minimum Order Quantity:2
Delivery Time:5～8day
Payment Terms:T/T,Western Union
Contact Now
Add to Cart
Verified Supplier
Location:
Shenzhen China
Address:
Room E, 22nd Floor, Block B, Duhui 100 Building, Huaqiangbei Subdistrict, Futian District, Shenzhen City
Supplier`s last login times:
within 42 hours
Product Details
Company Profile
Product Details
DDR3 4Gb SDRAM Memory Chip Refresh IMD256M16R30HG8GNF-107
DDR3 SDRAM
(TBD)1024M4 – 128 Meg x 4 x 8 Banks
(TBD)512M8 – 64 Meg x 8 x 8 Banks
(IMD256M16R30HG8GNF-125/107)256M16 – 32 Meg x 16 x 8Banks
Features
- VDD = VDDQ = +1.5V ±0.075V
- 1.5V center-terminated push/pull I/O
- Differential bidirectional data strobe
- 8n-bit prefetch architecture
- Differential clock inputs (CK, CK#)
- 8 internal banks
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Programmable CAS (READ) latency (CL)
- Posted CAS Addictive latency (AL)
- Programmable CAS (WRITE) latency (CWL) based on tCK
- Fixed burst length (BL) of 8 and burst chop (BC) of 4 (via the mode register set [MRS])
- Selectable BC4 or BL8 on-the-fly (OTF)
- Self refresh mode
- TC of 0°C to 85°C
- 64ms, 8,192 cycle refresh at 0°C to 85°C
- 32ms, 8,192 cycle refresh at 85°C to 95°C
- Self refresh temperature (SRT)
- Write leveling
- Multipurpose register
- Output driver calibration
Options
- ICMAX Memory
- Configuration
- 1 Gig x 4
- 512 Meg x 8
- 256 Meg x 16
- Product Code
- DDR3
- Density
- 4 Gigabytes
- Voltage/Refresh
- 1.5V/8k refresh
- FBGA package (Pb-free) - x4, x8
- 78-ball (10.5mm x 12mm)
- 78-ball (9mm x 10.5mm)
- 78-ball (8mm x 10.5mm)
- 78-ball (7.5mm x 10.6mm)
- FBGA package (Pb-free) - x16
- 96-ball (10mm x 14mm)
- 96-ball (8mm x 14mm)
- Timing - cycle time
- 1.07ns @ CL = 13 (DDR3-1866)
- 1.25ns @ CL = 11 (DDR3-1600)
- 1.5ns @ CL = 9 (DDR3-1333)
- 1.87ns @ CL = 7 (DDR3-1066)
Marking
- ICMAX PN
- 1,024M4
- 512M8
- 256M16
- G8
- RAF
- RHF
- RKB
- RGF
- REF
- GNF
- -107
- -125
- -15E
- -187E
Parameter
| Parameter | 1 Gig * 4 | 512 Meg * 8 | 256 Meg * 16 |
|---|---|---|---|
| Configuration | 128 Meg x 4 x 8 banks | 64 Meg x 8 x 8 banks | 32 Meg x 16 x 8 banks |
| Refresh count | 8K | 8K | 8K |
| Row addressing | 64K (A[15:0]) | 64K (A[15:0]) | 32K (A[14:0]) |
| Bank addressing | 8 (BA[2:0]) | 8 (BA[2:0]) | 8 (BA[2:0]) |
| Column addressing | 2K (A[11, 9:0]) | 1K (A[9:0]) | 1K (A[9:0]) |
| Page size | 1KB | 1KB | 2KB |
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
