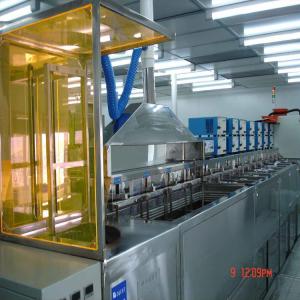

Manual Transfer 8 Tanks Ultrasonic Cleaning Machine With Oscillation Mechanism


Ultrasonic Cleaning Machine Overview:

This manual transfer 8-tank ultrasonic cleaning machine features an oscillation mechanism to enhance cleaning efficiency. The 8-tank system (pre-soak, ultrasonic wash, 3-stage rinse, passivation, drying) caters to complex cleaning needs. With adjustable frequencies (28-40kHz), it adapts to various metal parts.

The oscillation mechanism agitates parts, dislodging stubborn contaminants like oil, wax, and debris. Each tank has temperature control (30-80℃), optimizing detergent performance. Manual transfer allows careful handling of delicate components.

Ideal for precision parts in aerospace, automotive, and electronics industries—such as gears, connectors, and small hardware. The final drying tank with hot air ensures <0.1% moisture, preparing parts for assembly or coating. Boosts productivity by 40% vs single-tank cleaners.

Process configuration table of 8 Tanks Ultrasonic Cleaning Machine :

order

process flow

Ultrasonic power

service substance

wash

time

working temperature

1

loading

2

Ultrasonic cleaning with wash agent

1.5KW

28KHZ

Cleaner + municipal water

2-5min

50-60 degrees

3

Ultrasonic cleaning with wash agent

1.5KW

28KHZ

Cleaner + municipal water

2-5min

50-60 degrees

4

Ultrasonic cleaning with wash agent

1.5KW

28KHZ

Cleaner + municipal water

2-5min

50-60 degrees

5

Ultrasonic cleaning with wash agent

1.5KW

28KHZ

Cleaner + municipal water

3-5min

50-60 degrees

6

City water rinsing

City water

2-3 min

RT

7

City water rinsing

City water

2-3 min

RT

8

City water rinsing

City water

2-3 min

RT

9

The ultrasonic water rinsing

1.5KW

28KHZ

City water

2-5min

50-60 degrees


Main technical parameters of the Ultrasonic Cleaning Line:

Total ultrasonic power

7.5KW (a total of 5 ultrasonic tanks, each 1.5KW)

Ultrasonic frequency

28KHz.

Maximum total power of the equipment

20 KW.

Power supply

380VAC, 3p5w,50HZ.

Machine size

(length x width x height) approximately according to the drawing or physical object


For a complete technical solution Of Ultrasonic Cleaning Line, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:


About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
