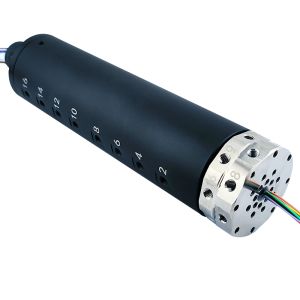

Pneumatic Slip Ring with 16 Air Channels and 13 Signal Channels for 4-6mm Applicable Trachea
Brand Name:GuRen
Certification:ISO9001.CE.RoHS
Model Number:Q16PM5-13PS-B0827
Minimum Order Quantity:1
Delivery Time:3 weeks ARO
Payment Terms:L/C,D/P,T/T
Contact Now
Add to Cart
Verified Supplier
Location:
Shenzhen Guangdong China
Address:
3rd Floor, East of Building D, Zhongxi Industrial Park, No. 30, Xiangxing Road, Shajing Sub-district, Bao'an District, Shenzhen City, Guangdong Province, China
Supplier`s last login times:
within 1 hours
Product Details
Company Profile
Product Details
Product Overview
This 48mm outer diameter, pneumatic-electric hybrid slip ring with
16 inlet and 16 outlet air channels and 13 signal channels is
designed for rotating equipment requiring simultaneous transmission
of pneumatic power and electrical signals. It features 16 M5
pneumatic ports (compatible with 4-6mm tubing) and 13 2A signal
channels, housed in a rugged aluminum alloy housing. Supporting 200
RPM and 220V operating voltage, it provides a highly integrated
solution for rotary fixtures, small machining units, and other
equipment in the automation field, effectively simplifying
mechanical structures and improving reliability.
Key Features
1. Highly Integrated Functionality, Integrated Pneumatic and Electrical
This innovatively integrates 16 independent pneumatic channels and 13 electrical signal channels into a single product.
It can simultaneously transmit pneumatic power and electrical control signals, providing an integrated rotary connection solution for complex equipment and effectively simplifying mechanical structures.
2. Compact Structure and Standard Interfaces
The aluminum alloy housing ensures structural strength while maintaining lightweight.
With an outer diameter of only 48mm, it enables a high-density channel layout within a compact footprint, saving internal equipment space.
The pneumatic circuit utilizes an industry-standard M5 connector, directly compatible with 4-6mm tubing, for easy installation and strong versatility.
3. Reliable Performance and Wide Applicability
The electrical system utilizes high-temperature-resistant AWG26 Teflon cable. Each signal channel can carry 2A of current, meeting the transmission requirements of most control signals and low-power devices.
It supports a 220V operating voltage and a rotation speed of 200 RPM, with performance parameters that meet the requirements of mainstream industrial applications.
Technical Parameters
| Electrical Parameters | Gas Parameters | ||
|---|---|---|---|
| Dielectric strength | 200VCA@50Hz,60s | Number of trachea | 16 in 16 out |
| Insulation resistance | ≥300MΩ/200VDC | Pressure | -80KPa-0.8MPa or vacuum |
| Dynamic resistance change value | ＜10mΩ | Rotational torque | <0.3N.m |
| Rated voltage | 0～220VDC/VAC | Rotation speed | 200rpm |
| Wire Specifications | AWG26#Teflon wire (current-dependent) | Shell material | Aluminum Alloy |
| Wire length | Default 250mm (Customizable) | Temperature | -30℃～+80℃ |
| Contact material | Precious metal contacts | Operating humidity | 0～85%RH |
| Protection level | IP51 | ||
Technical Drawings
Application Scenarios
This product is specifically designed to address the need for synchronized transmission of pneumatic actuation and electrical control on rotating equipment. It is primarily suitable for the following automation applications:
1. Industrial Automation and Robotics
Rotary Gripper and Gripper: Provides air supply (16 air lines) to
multi-cylinder grippers while simultaneously transmitting sensor
signals (such as position detection) or vacuum cup control signals
(13 circuits), enabling workpiece grasping, rotation, and
placement.
Small Machining Center Rotary Table: Drives the pneumatic locking
mechanism for indexing the table and transmits position feedback
signals.
Rotary Wrist: Provides both power and control connections for end
effectors in a compact footprint.
2. Packaging, Filling, and Food Machinery
Rotary Filling Head/Sealing Machine: Controls the movement of
multiple filling or sealing cylinders and synchronizes signals from
flow meters, temperature sensors, and other sensors.
Material Sorting Carousel: Drives pneumatic sorting arms and
transmits trigger signals for vision recognition systems.
3. Medical and Laboratory Automation
Diagnostic Equipment Rotary Modules: Used to position sample or
reagent trays, enable pneumatic door opening and closing, and
transmit sample test signals.
Laboratory Automation Systems: Integrate pneumatic functions such
as pipetting and stirring onto a rotating platform, along with
their control.
4. Special Equipment and Testing Equipment
Test Equipment Turntables: Provide a simulated pneumatic
environment for the test device on the turntable and simultaneously
collect multiple test data channels.
Display Units: Drive the pneumatic lifting and unfolding mechanisms
of rotating displays and control lighting, displays, and other
effects.
