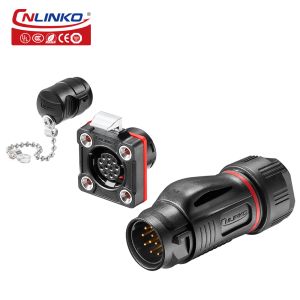

CNlinko M20 Industrial Waterproof IP68 12 Pin Automotive DC Power Connector Outdoor Electrical Cable Wire Adapter Plastic Plug
Brand Name:CNLINKO
Certification:CUL,UL,CE,ROHS,CCC,ISO9001
Model Number:BD-20-C12PE-02-001A&BD-20-J12sx-02-401A
Minimum Order Quantity:10
Place of Origin:Guangdong, China
Price:US$7,25-8,25
Contact Now
Add to Cart
Site Member
Location:
Shenzhen China
Address:
Address: 212，No.3 building, 1970 Science Park,Minzhi community, Minzhi street, Longhua District, Shenzhen
Supplier`s last login times:
within 36 hours
Product Details
Company Profile
Product Details
CNlinko M20 Industrial Waterproof IP67 12 Pin Automotive DC Power Connector Outdoor Electrical Cable Wire Adapter Plastic Plug
Product Description
BD series : high reliability for longterm work, waterproof and corrosion resistance, high transmission efficiency, high and low temperature resistance and ergonomic design.
1.Has good temperature rise performance, more reliable for long-term continuous operation
2.Using high-end contact material(copper with gold-plated), signal and data transmission is more efficient
3.Reliable connection and smaller size, suitable for road monitoring overhead scenes
4.Waterproof and corrosion-resistant, no fear of road monitoring outdoor environment
5.High and low temperature resistance, can adapt to the influence of the four seasons climate environment.
6.Effectively reduces the distance between the installation panel and the exposed products, saving the external space of the user equipment.
Specifications
BD-20-C07PE-02-001A BD-20-J07SX-02-401A | |
| Connecting mode | Bayonet connection |
| Protection level | IP67 |
| Cable specification | 0.5mm2 /20AWG |
| Diameter range | Φ5.0mm ~Φ6.5mm |
| Contact diameter×Qty | Φ1.0×12 |
| Current rating(A) | 5A |
| Operating voltage(AC.V.rms) | 250V |
| Withstand voltage(AC.V)1min | 1500V |
| Contact resistance | <5.0mΩ |
| Insulation resistance | >500MΩ |
| Durability | ≥500 mating&unmating cycles |
| Temperature rating | -40°C~85°C |
| Method of connecting cable | Solder |
| Prevent the combustion level | UL94-V0 |
| Material | |
| Shell&insulated parts | High performance engineering plastics |
| Hardware metal | Zinc alloy(pearl hard chromium) |
| Contact pin | Copper alloy(gold-plated) |
| Spring | Stainless steel |
| Sealing | Silica gel |
| Main characteristics | |
| Sealed against dust and fluid (IP65/IP67) | |
| Vibration resistance,impact resistance,stretching resistance | |
| bayonet connect; socket with cover | |
| Application industries | |
| Stage equipment - The smart grid | |
| Medical equipment - Server | |
| Solar energy equipment - Marine equipment | |
| Electric power equipment - Vehicle equipment | |
| Communications equipment - Heavy machinery | |
