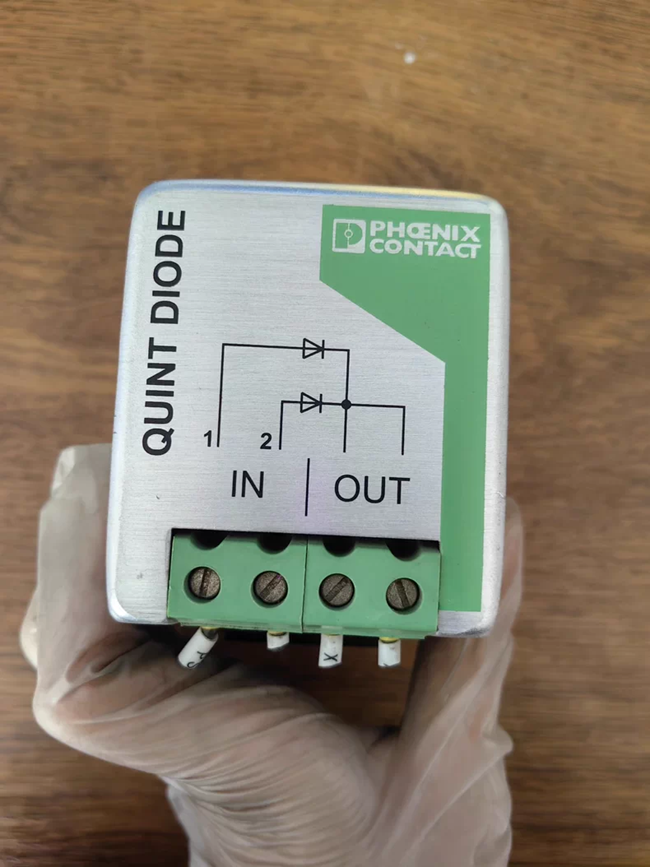

2938963 Phoenix Contact QUINT-DIODE40 Power redundancy module Diode module


Product Details

The QUINT-DIODE/40 redundant module is a power supply redundant module produced by Phoenix Contact, with the product model number 2938963. This module adopts a diode module design, which can reliably decouple the power supply operating in parallel, ensuring the high availability of the application. Its main function is to prevent short circuits from affecting the load and provide absolute power supply safety, whether at the output end of one of the power sources or on the power line from the power source to the diode.
This module belongs to the QUINT series and features a robust and durable design, ensuring the highest utilization rate of the equipment even in hazardous areas or harsh environmental conditions. This module can be used both as a redundant backup and to enhance power performance


Core Features:

High reliability: Diodes are used for decoupling to ensure absolute power supply safety

Durable and sturdy: Designed to be robust, it is suitable for harsh environmental conditions and hazardous areas

High availability: It can reliably decouple the parallel operating power supply to ensure the high availability of the application

Flexible configuration: Supports dual input redundancy or single input to enhance power performance

High efficiency: > 97% efficiency

Long service life: MTBF (IEC 61709, SN 29500) 28571428 hours (40 °C)


Typical applications

Parallel redundant POWER supply: Connect two or more switching power supplies (such as QUINT POWER series power supplies) in parallel and decouple them through QUINT-DIODE/40. In this way, when one of the power supplies fails or a short circuit occurs at its output end or even in the power supply line between the power supply and the diode, it will not affect the continuous and safe power supply to the load.

Enhance system availability: In industrial Settings with strict requirements for operational stability (such as process control equipment and industrial applications), redundant power supply solutions can ensure that the failure of one power source does not cause the entire system to shut down.
