PRODUCT DESCRIBE
1 inch Positive Displacement Pipeline Flow Meter for Sale
I. Product Introduction
M series flowmeter has a simple and effective metering design, which consists of a frame and three rotors rotating in the meter. There is no metal-to-metal contact in flow tank , eliminate any degradation in accuracy and provide long service life. The rotor is supported by bearings inserted in two bearing discs, and at the end of each rotor shaft is A timing gear. Then the timing rotation between each rotor will be transferred from the scale adjuster to the register, which will produce consistent and high accurate measurement.
II. Product parameters
Product Name | 1" Positive Displacement Flow Meter |
Model No. | HT.RJ01 |
Body Meterial | meter |
Size | 1" |
Medium | Gasoline, Kerosene/ Paraffin , Diesel |
Weight | 28kg |
III. Performance and characteristics
1. Material: The main body is made of light aluminum alloy, which
is integrally molded by low-pressure casting, light, strong and
durable.
2. Corrosion resistance: The surface is treated by hard oxidation, which has good oxidation resistance and wear resistance.
3. High flow rate: Reasonable structural design to ensure large flow rate.
4. Emergency cut-off: When subjected to strong collision, the valve body breaks at the cut-off groove, and the tank body is kept sealed, effectively preventing oil leakage.
2. Corrosion resistance: The surface is treated by hard oxidation, which has good oxidation resistance and wear resistance.
3. High flow rate: Reasonable structural design to ensure large flow rate.
4. Emergency cut-off: When subjected to strong collision, the valve body breaks at the cut-off groove, and the tank body is kept sealed, effectively preventing oil leakage.

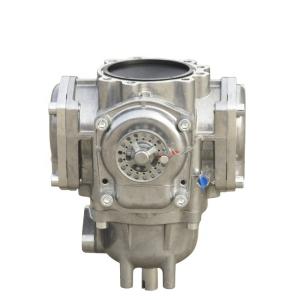

IV. Product Pictures
V. Maintenance
1. Remove the filter screen: When transporting thick oil products
(such as crude oil), the filter screen on the valve can be removed
to avoid affecting the flow rate.
2. Cylinder maintenance: In case of oil leakage at the interface, replace the seals in the piston cylinder.
3. Maintenance: Check whether the air inlet pipe is damaged from time to time, so as to avoid the valve cannot be opened normally due to air pipe problems.
4. Emergency treatment: If the valve cannot be opened by air intake under unexpected circumstances, the emergency bolt on the bottom piston cylinder can be unscrewed, and a hexagonal bolt with the same specification and a length of 10cm can be screwed into the screw opening, and then the screw can be slowly screwed in until the valve is opened.
2. Cylinder maintenance: In case of oil leakage at the interface, replace the seals in the piston cylinder.
3. Maintenance: Check whether the air inlet pipe is damaged from time to time, so as to avoid the valve cannot be opened normally due to air pipe problems.
4. Emergency treatment: If the valve cannot be opened by air intake under unexpected circumstances, the emergency bolt on the bottom piston cylinder can be unscrewed, and a hexagonal bolt with the same specification and a length of 10cm can be screwed into the screw opening, and then the screw can be slowly screwed in until the valve is opened.
Company profile
Hubei Huate special equipment Co., Ltd., founded in 2009, is
located in Suizhou, the capital of special vehicles in China. It is
a professional enterprise integrating R & D, casting, processing
and sales of special auto parts and special vehicles. The products
have high popularity and influence in petroleum, chemical, thermal,
metallurgy, shipbuilding, medicine, food, transportation and other
industries, and the products sell well in domestic and foreign
markets. The company covers an area of 18000 square meters and a
plant area of more than 9000 square meters. It has more than 200
sets of processing, production and testing equipment. At present,
there are more than 90 employees and more than 30 technical
backbone and R & D personnel. With an annual
production of 35000 sets of special auto parts, it is a
high-quality supporting supplier for domestic large-scale
atmospheric dangerous goods tank truck and powder material
transport vehicle enterprises.
