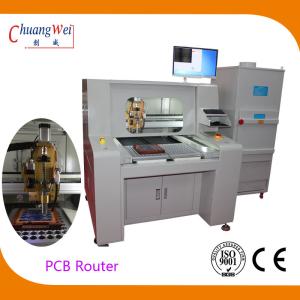

PCB Depaneling Router Two Work Tables PCB Depanelizer Machine
Brand Name:ChuangWei
Certification:CE Certification
Model Number:CW-F04
Minimum Order Quantity:1 Set
Delivery Time:1-3 days after payment confirm
Payment Terms:T/T L/C D/P Western Union
Contact Now
Add to Cart
Verified Supplier
Location:
Dongguan Guangdong China
Address:
3F, Building E, Tongjin High-tech Park, Guan chang Road, Dalingshan Town, Dongguan City, Guangdong Province, China
Supplier`s last login times:
within 12 hours
Product Details
Company Profile
Product Details
Stress Free Depanelization PCB Router with Automatic Alignment Compensation,CW-F04 Key Features
- Solution for stress free depanelization
- Fixture-based highly efficient dust vacuum system
- Clean and precise depanelization for densely populated PCBs
- Advanced image-processing software offers point-and-click operation for programming router paths
- Automatic alignment compensation by CCD camera
- User-friendly operation
- Extended bit life by automatic router bit depth adjustment
- Improved tact time
- Low maintenance required
- Reasonable price
- Calibration free linear robot
Specification:
| Model | CW-F04 |
| Standard working area | 450*350mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 450*350mm |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
PCB Depaneling Router Two Work Tables PCB Depanelizer Machine
