Multi-function Packaging Machines Candy Sugar Packing Machine

Multi-function Packaging Machines Candy Sugar Packing Machine

Description

This machine seamlessly combines a high-precision 4-head linear weigh scale with a high-speed vertical form-fill-seal (VFFS) unit. It automatically measures exact portions of your granules using vibration-free linear actuators, then delivers them into bags formed from roll film. The result is a complete, professional pouch with airtight seals, ready for retail or bulk distribution.

Application: Precision weighing and automated packaging of free-flowing food granules (e.g., coffee beans, rice, pulses, seeds, nuts, snacks, pet food, powder mixes, frozen fruits/vegetables).

Features

1. 4 Independent Linear Scales Parallel weighing for high speed without sacrificing accuracy. Redundancy ensures if one head adjusts, others maintain pace.
2. Advanced Weighing Control Microprocessor-driven feedback system with auto-zero and auto-adjust functions for consistent ±0.5-1% accuracy, minimizing product giveaway.
3. Gentle Vibration-Free Feeders Patented linear drive technology protects fragile granules (like chips, puffed snacks) from breakage and prevents powder separation in mixes.
4. Full 304/316 Stainless Steel Construction Corrosion-resistant, hygienic, and easy to clean. Meets food-grade requirements.
5. 7" Color Touchscreen HMI Intuitive operation. Store 10+ product recipes. Real-time monitoring of speed, weight, output, and error diagnostics.
6. Servo-Driven Film Pulling & Sealing Precise bag length control, clean seals, and reduced film waste.
7. Multiple Bag Style Options Produce pillow bags, gusseted bags, or with easy-open notches/hangers.
8. Optional Modules Auger filler for fines, nitrogen gas flushing for freshness, date coder, check weigher, zipper applicator, etc.
9. Compact & Ergonomic Design Saves floor space. Easy access for maintenance, cleaning, and film roll changeover.

Specification

Weighing Range: 10g - 5000g (customizable)

Weighing Accuracy: ±0.5% to ±1% (depends on product and weight)

Packaging Speed: 25 - 50 bags/minute (depending on weight and product)

Bag Size (W x L): Min: 60mm x 80mm / Max: 300mm x 450mm

Film Roll Max Width: 320mm

Film Material: PE, PP, PET/AL/PE, laminates, etc.

Power Supply: 220V/380V, 50/60Hz, 3KW

Air Pressure: 0.6-0.8 MPa

Machine Dimensions (LxWxH): ~1500mm x 1000mm x 2200mm

Machine Weight: ~650 kg

Control System: PLC + Touchscreen HMI

Languages: English, Spanish, French, etc. (configurable)

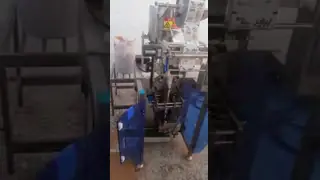

Machine And COFFEE GRAINS Packing Sample

Prodution Flow

Packing Machine Factory Introduction

Guangzhou Penglai Packing Machinery Co., Ltd. is a research and development, manufacturing, sales in one of the enterprises. The company is located in Building B35, Huachuang Industrial Park, Shi ji Town.Panyu District, Guangzhou, covers an area of about 6000 square meters, and has been deeply engaged in packaging equipment industry for more than 20 year's. Can directly according to customer needs design and manufacture professional packaging equipment of modern enterprises.

The company's independent research and development of multi-line liquid, particle, powder packaging machine, liquid, particle vacuum, packaging machine, super high speed packaging machine, Ultrasonic nonwoven packaging machine

Our packaging equipment is widely used in chemical, daily chemical, food, medicine, health products and other industries. At present, it has obtained CE recognitionCertificate, TUV certification, SGS certification and more than 20 national patents.

Timely technical service & 5 Star Feedback

Company Overview

Guangzhou Penglai Packaging Equipment Co., Ltd., established in 2011, is located in Panyu District Guangzhou, China. We are a high-tech enterprise specializing in the research, development, manufacturing, and sales of packaging equipment. The company is dedicated to providing efficient, innovative, and standardized packaging solutions for various industries.

1.Company Positioning: Focused on the packaging equipment sector, serving industries including food, pharmaceuticals, daily chemicals, and health care.

2.Technological Strength: Relying on robust R&D capabilities, Penglai Packaging continuously drives innovation to ensure our products remain at the forefront of the industry.

3.Vision for Growth: Committed to becoming a global leader in the packaging equipment industry, with a strong presence in both domestic and international markets.
