Product Name:Automatic Tank Welding Machine with Multi-Process
Capability
Product Description

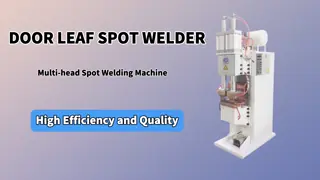

This Stationary Spot Welding Machine is a micro-computer controlled system designed for automated projection and spot welding applications, with a common use in fabricating components like automotive fuel tanks. Operating on a 380V/50Hz three-phase AC power supply, it utilizes three-phase rectifier and inverter technology along with a feedback control system to manage the welding heat cycle. This includes control over pre-press, weld, hold, and off times to meet specific welding requirements. The machine offers multi-process capability for materials such as low-carbon steel, stainless steel, and non-ferrous metals.
Technical Parameters
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
|---|---|---|---|---|
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Main Features
A. Controlled & Versatile Welding Process
Programmable Welding Cycles: Micro-computer control allows for precise management of the welding sequence, including pre-press, weld, hold, and off times, aiming to accommodate different material and thickness requirements.
Multi-Material Application: The system is designed to weld a range of materials including low-carbon steel, stainless steel, coated steel, and non-ferrous metals in forms such as wire, sheet, and pipe.
B. Robust Power & Stable Construction
Dedicated Resistance Welding Transformer: Equipped with a specialized transformer featuring forced internal water-cooling and high-grade silicon steel, designed for strong power output and a high-duty cycle in industrial environments.
Stable Pressure Application: The machine structure incorporates upper and lower electrodes with an auxiliary stroke pressure mode, intended to provide stable application of force during welding.
C. Adaptive & User-Friendly Operation
Multiple Program Storage: The micro-computer controller can store up to 16 sets of welding parameters, facilitating quick changeover for different production jobs or material types.
Broad Industry Application: Engineered for use in various industries such as automotive, appliances, and hardware for projection welding processes on components like nuts, studs, and brackets.
Detail Images
Different Angles of Product
Automatic Tank Welding Machine with Multi-Process Capability
