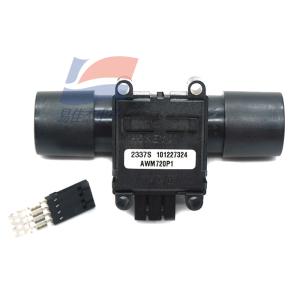

AWM720P1 Air Flow Sensor Dry Flow Sensor Precision Medical Air 5V Output Voltage
The AWM700 Series, Compensated/Amplified Airflow Sensors provide
in-line flow measurement with a specially designed
bypass flow housing. These sensors measure flow as high as 300
standard liters per minute (SLPM) while inducing a typical pressure
drop of 1 inH2O.
The AWM700 has a high flow range capability in a small package, as
well as a 6 ms response time. These sensors require a 10 Vdc
supply, but consume only 60 mW of power.
Specification:
| For use with | Dry Gas |
| Range | 200 SLPM |
| Accuracy | 0.5% |
| Output voltage | 5 V |
| Operating supply voltage | 8 V to 15 V |
| Port size | 22 mm |
| Case material | Silicon |
| Maximum operating temperature | +85°C |
| Minimum operating temperature | -25°C |
| Maximum supply voltage | 15 V |
| Minimum supply voltage | 8 V |
| Unit weight | 34 g |
