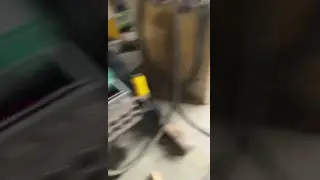

Computer Automatic Chart Recorder Hydro Test Pump Pressure Testing Pump

Computer Automatic Chart Recorder Hydro Test Pump Pressure Testing Pump

Details:

1. Power end crankshaft housing is made by the cast iron.it is stronger than the aluminium alloy.

2. Cross head is made by the Babbitt hard alloy.it has a long working life for industrial design.

3. Hydraulic end pump head is made by the hard alloy 40Cr.it can work continuously for cleaning jobs.

4. All hydraulic end is desgined for easy uninstall,so it is easy to fix when the parts broken.

5. For some outdoor use purpose,we can make it driven by the diesel engine or the gasoline engine.

6. The system can test the pressure,record pressure ,and print out the pressure curve datas timely.

Computer Automatic Chart Recorder Hydro Test Pump Pressure Testing Pump

Characteristics as below:

Product Description

The high pressure pumps have two kinds of the usage,one is for the high pressure cleaning purpose,and another is for pressure testing purpose.Hydro Test Pump is an equipment which is used to test the pressure of objects,the machine with high pressure water jet by means of a power device. It can jet high pressure water jet into the objects like the pipes,valves ,let the objects full of high pressure water jet.to see if the objects water leakage or not when the hydro test pump reach a pressure datas.this pump install a stop checking valve,ti can stop the high pressure water jet comes back into the pump.so the pressure can show on the pressure gauge.the pressure test purpose can reach.

The pressure test pump can be driven by the electric motor,petrol engine,diesel engine.due to some places have no electricity,so most of customers like the diesel/petrol engine drive.

The hydrostatic pressure testing pump is a diagnostic technique to perform hydrostatic tube test,hydrostatic pipelines test,pressure hoses pressure testing,cylinder hydro test,boilers pressure test,valves pressure test etc,for leaking or defects.

The hydro test pump equipment is used to check the component to be tested,is being filled up with an incompressible liquid,such as water or oil,with the help of a positive displacement appropriate safety relief and controls,the pressure of the test componet is slowly increased to a predetermined time.Visual inspection is subsequently performed to determine wheter any leakage exists or the pressure reduces from the set pressure point.

Our factory also offers hydrostatic test pump with ore-filling cum pre-pressurzing cum pressure building system.For large volume of hydro test pump combine hydro testing unit is most prefered solution.

also we supply the automatic hydro test pump controller .

Fundamental structure and working principle:

The machine is mainly composed by high pressure reciprocating pump, power plant and cleaning accessories.

1, high pressure reciprocating pump:

This kind of pump , as a horizontal triplex plunger pump , is driven by electric motor ,which can be divided into two parts: power end and fluid end.

• Power end

This part consist of belt pulley crankshaft, and connecting rod. Through the turning of belt and belt pulley, the electric motor decreases speed and drives the crankshaft to rotate. Then crank link mechanism transforms the rotation motion into straight reciprocating motion.

(2) Fluid end (picture 2)

This part consists of plunger suit, high-pressure cylinder, and pump body, inlet and outlet water valve. In high-pressure cylinder fixed on the case body, the connecting rod drives plunger to do reciprocating motion, which makes the internal volume of cylinder changed periodically. When in suction stroke, the internal capacity of the cylinder body swells, the water outlet valve closes and forms partial vacuum. Together with the effect of atmospheric pressure, actuating medium is forced into high-pressure cylinder from inlet valve. While in discharge stroke, the inlet water valve closes. Plunger piston squeezes the actuating medium from outlet water valve into pump body, and into pressure regulating valve, then through the high-pressure tube arrivals spray gun by whose resistance the high pressure water forms.

Our factory offers wide range of the pressure testing pump ranging from 10L/min to 400L/min and the pressure from 100bar to 1400bar.

Some Foreign customers who came to our factory to have a look at the machines:

The pressure test pump package:

Normally we use the wooden box to pack the machines like the below photos:

FAQ

Computer Automatic Chart Recorder Hydro Test Pump Pressure Testing Pump

Q1. What about the lead time?

A: 20 working days for mass production.

Q2. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc.

Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by sea shipping.

Q4. How to proceed an order for the product?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly:we sign a contract

Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Chengdu Sincere Da Machinery Co.Ltd,a company with 40 years professional manufacturing factory,which located in Chengdu China.a place where is famous for the pandas.

from year 1982 set up,we are making the triplex plungers pump all the time.now we can make the high pressure pump pressure can be from 100bar to 6000bar,water flow from 10L/min to 400L/min. the pumps are widely used in oil refinery pipes cleaning,heat exchangers pipes cleaing,ship hull cleaing,oil paitings removing,rust removing,and so on......

meanwhile our pumps can be used for the fuel pipelines pressure testing,gas steel bottles explosion pressure testing,all kinds of the tubes pressure explosion testing.and so on.....

we pay attention to the quality control,we make the pumps working safety,stable,easy to fix at customers hands.we can supply the good services to customers all the time,once customers find the machines have problem,we can supply the way to solve immediately.

so many foreign customers always give highly comments of our factory.
