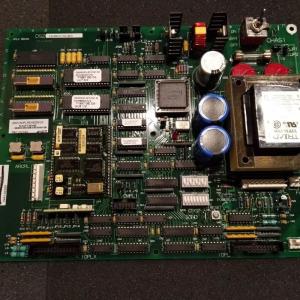

GE DS215UPLAG1BZZ01A(DS200UPLAG1BEA) LAN Power Supply Board
Product Details:
The GE DS215UPLAG1BZZ01A(DS200UPLAG1BEA) is a vital LAN Power Supply Board for the Mark V Series turbine control drive assembly, distinguished as a revised variant of its parent board, the DS200UPLAG1. It incorporates three key revisions: two functional revisions (rated B and D) and one artwork revision (rated A), which enhance its performance and compatibility within the Mark V system. Designed to meet GE’s industrial standards for turbine control, the board relies on a comprehensive set of hardware components to deliver stable power and enable control signal transmission, supporting the overall reliability of gas and steam turbine operations.
Key Features:
Revised Product Design: As an upgraded version of the DS200UPLAG1, it includes three
targeted revisions (B, D, A) — two focused on functional
improvements to optimize power supply performance, and one artwork
revision to refine board layout, ensuring better component
integration and signal integrity.
Diverse Hardware Configuration: It is equipped with essential components for power management and
signal handling, including two 26-pin connectors (for control
signal transmission via ribbon cables with plastic connectors), 1
fuse (for overcurrent protection), 1 toggle switch, 1 reset button,
and 1 8-pin connector. The ribbon cable design, with multiple fine
wires, enables efficient and secure signal transfer between the
board and other system components.
Customizable Jumpers & Switches: Featuring 17 jumpers and 16 switches, the board supports
site-specific configuration. While some are factory-set for testing
only, others allow on-site adjustments to tailor the board to
operational needs. A critical best practice during replacement is
to replicate the jumper/switch settings of the old board to ensure
seamless system integration.
Informative Product Number: Despite limited GE instructional manuals, the DS200UPLAG1BDA part
number encodes key details: normal assembly type, domestic
manufacturing location, “UPLA” functional identifier (aligning with
its LAN power supply role), Mark V Series Group 1 classification,
and the three specific revisions — serving as a reliable reference
for hardware specifications.
